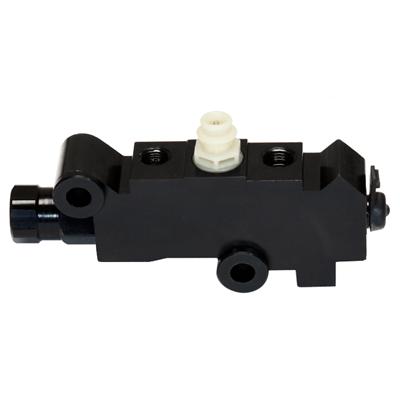

Wilwood Brake Proportioning Valves 260-11322

Wilwood brake proportioning valves are adjustable between 100 and 3,000 psi (depending on model) with a twist of a knob or the flip of a lever, and most can reduce pressure up to 57 percent. They let you adjust brake bias quickly and easily to compensate for changing track conditions, or for big and little tire combinations.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-11322
Part Type: Brake Proportioning Valves and Distribution Blocks
Product Line: Wilwood Brake Proportioning Valves
HP Direct Part Number: WIL-260-11322
UPC: 889545066791
Adjustment Style: None
Inlet Quantity: 2
Inlet Attachment: Female threads
Brake Line Inlet Size: 1/2 in.-20 inverted flare
Brake Line Inlet Size 2: 7/16 in.-24 inverted flare
Outlet Quantity: 2
Outlet Attachment: Female threads
Brake Line Outlet Size: 3/8 in.-24 inverted flare
Brake Line Outlet Size 2: 9/16 in.-18 inverted flare
Connector For Warning Light: Yes
Minimum Pressure (psi): 100 psi
Maximum Pressure (psi): 2,000 psi
Pressure Reduction (%): 63 percent
Proportioning Valve Finish: Black anodized
Proportioning Valve Material: Aluminum
Remanufactured: No
Quantity: Sold individually.
Notes: Features one 1/2-20 in. inverted flare and one 7/16-24 in. inverted flare inlets, one 3/8-24 in. inverted flare and one 9/16-18 in. inverted flare outlets. Direct replacement for 1978 and newer General Motors vehicles equipped with front disc / rear drum brakes.
