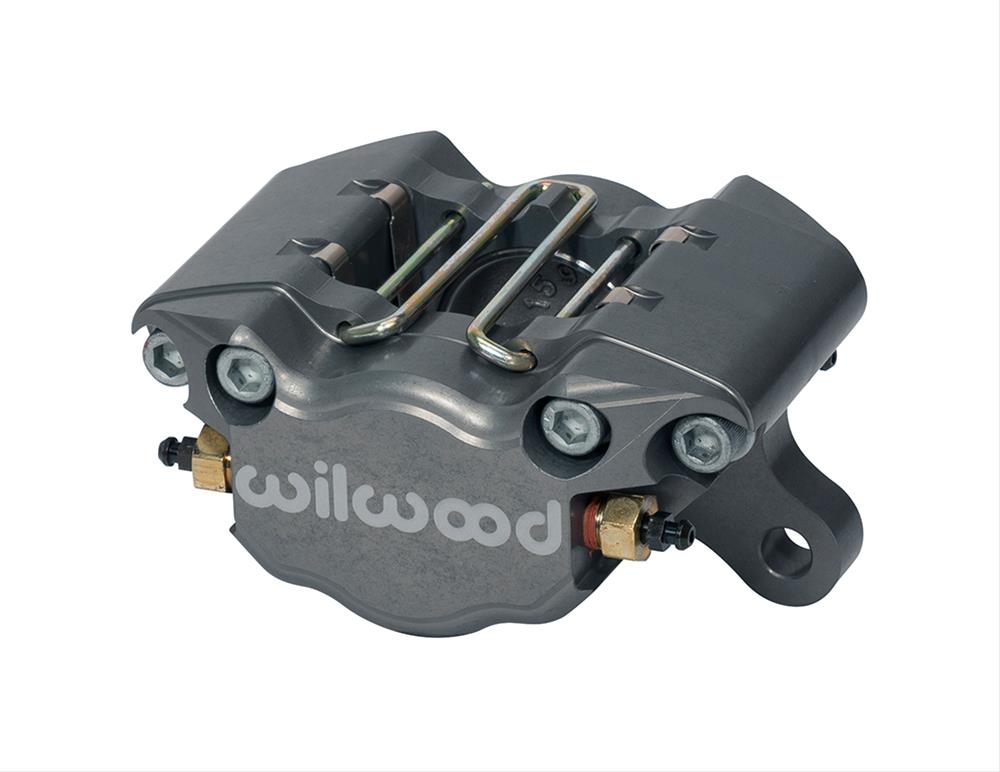

Wilwood Billet DynaPro Calipers 120-9689

These billet DynaPro calipers combine pure race technology with a new generation of Wilwood performance enhancements. Their sleek profile, superior strength, and durability in adverse conditions are easily adapted to a broad range of sports, rally, and off-road driving applications. Wilwood Billet DynaPro calipers feature a stress-flow forging that realigns the metal's grain structure within the contour of the caliper body. The FEA-generated, radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridge bolts. Structural deflection and volume displacement tests have proven the efficiency of this innovative design. All calipers are equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-9689
Part Type: Brake Calipers
Product Line: Wilwood Billet DynaPro Calipers
HP Direct Part Number: WIL-120-9689
UPC: 889545007091
Caliper Series: Billet DynaPro
Caliper Piston Quantity: Two
Piston Diameter (in.): 1.750
Rotor Thickness (in.): 0.380 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: The DynaPro Single billet caliper is the next generation of calipers available as an upgraded or replacement for applications previously using the Dynalite Single series calipers.
