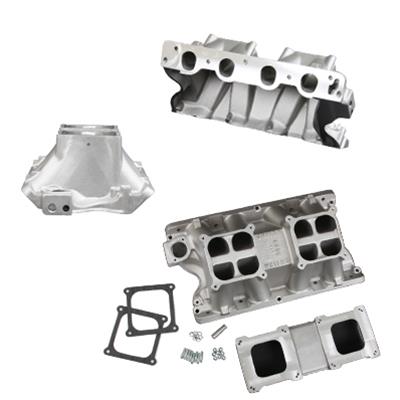

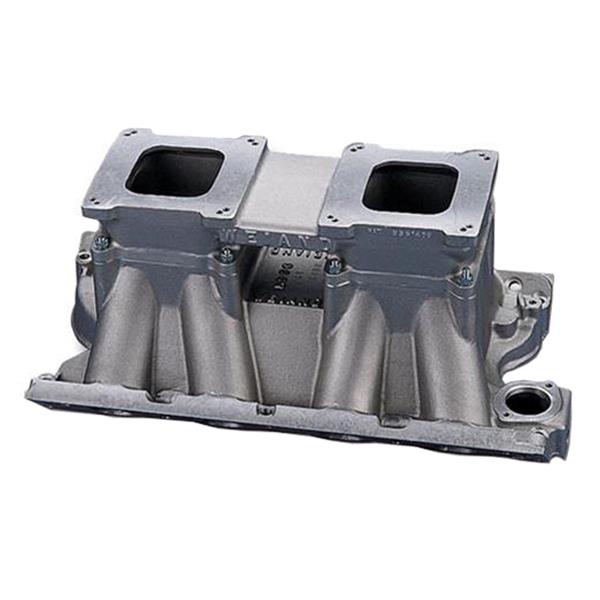

Weiand Hi-Ram Tunnel Ram Intake Manifolds 1993

For maximum performance in normally aspirated competition applications, Weiand Hi-Ram Tunnel Ram intake manifolds are the manifold of choice. They're designed primarily for drag racing, truck/tractor pulls, and performance marine applications where high rpm is required but bottom-end torque isn't. With their patented D-shaped port runners and large plenum chamber, the manifolds provide optimum thrust of the air/fuel mixture to the intake ports. They mount either single or dual square-mount carbs and, depending on the application, have power bands that run from 2,500 rpm to as high as 9,000 rpm. Separate tops and runners are available for some manifolds. Order the model recommended for your year/make, engine, and cylinder head application.Brand: Weiand
Manufacturer's Part Number: 1993
Part Type: Intake Manifolds, Carbureted
Product Line: Weiand Hi-Ram Tunnel Ram Intake Manifolds
HP Direct Part Number: WND-1993
UPC: 032474199300
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: Two
Intake Style: Tunnel Ram
Basic Operating RPM Range: 2,800-9,000
Intake Manifold Height: 10.120 in.
Intake Color: Natural
Intake Material: Aluminum
EGR: No
Quantity: Sold individually.
Notes: Carburetor center to center distance 9.875 in. Cobra Jet and Super Cobra Jet heads will require significant port matching since they have larger than stock ports.
