Description

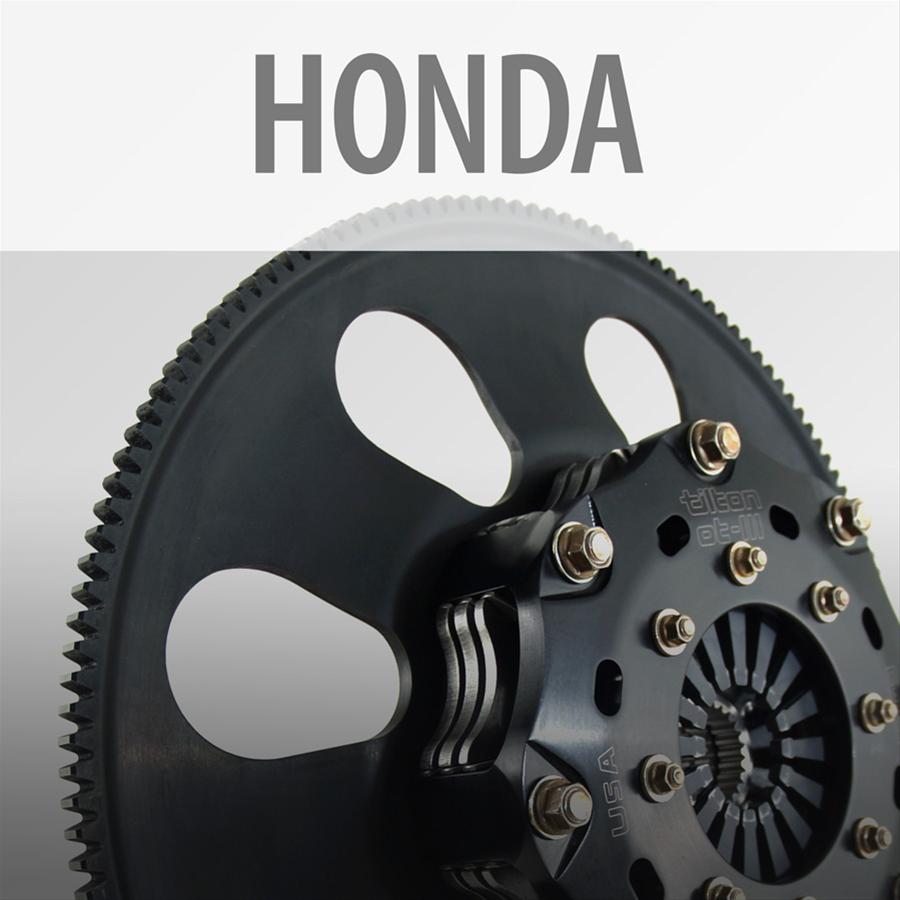

Tilton OT-Series Cerametallic clutch kits are primarily designed for racing applications. They utilize a unique blend of ceramic and metallic materials to create superior 4-paddle discs that allow for some clutch modulation. Because cerametallic discs are thicker than sintered metallic discs, their increased mass provides higher heat capacity. Plus, the engagement characteristics of cerametallic clutches are smoother than sintered metallic clutches. These features have made Tilton cerametallic clutches popular in rally, hill climb, club-racing, off-road, and extreme street/strip applications.
Features include:
* Open, one-piece clutch cover design; provides lower operating temperatures, higher strength and minimized deflection for quick shifting
* Several spring rate options; provide a wide range of torque capacities and release loads to tune the clutch for the application
* Chrome vanadium diaphragm springs and engineered pressure plate geometry; provide high clamp load-to-wear ratio, low release loads, and quick shifting
* High-strength steel pressure and floater plates
* 0.283 in. thick friction discs; provide excellent wear resistance and withstand elevated temperatures
* Hardened steel thrust buttons; provide a smooth and durable surface for pressure and floater plates
* Dynamic spin balanced
* Individually inspected for proper assembly and balance
Brand: Tilton Engineering
Manufacturer's Part Number: 56-308H
Part Type: Clutch Kits
Product Line: Tilton OT-Series Cerametallic Clutch Kits
HP Direct Part Number: TIL-56-308H
Clutch Usage: Performance
Clutch Disc Quantity: 2
Flywheel Included: Yes
Input Spline Quantity: 24
Input Shaft Diameter: 26.00mm
Disc Diameter (in.): 7.250 in.
Disc Diameter (mm): 184mm
Disc Material: Cerametallic
Disc Style: 4-paddle
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: No
Alignment Tool Included: No
Pilot Bushing Included: No
Flywheel Material: Billet steel
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Designed for use with Honda B16 and B18 applications. Capable of 480 ft.-lbs. torque capacity.
Features include:
* Open, one-piece clutch cover design; provides lower operating temperatures, higher strength and minimized deflection for quick shifting
* Several spring rate options; provide a wide range of torque capacities and release loads to tune the clutch for the application
* Chrome vanadium diaphragm springs and engineered pressure plate geometry; provide high clamp load-to-wear ratio, low release loads, and quick shifting
* High-strength steel pressure and floater plates
* 0.283 in. thick friction discs; provide excellent wear resistance and withstand elevated temperatures
* Hardened steel thrust buttons; provide a smooth and durable surface for pressure and floater plates
* Dynamic spin balanced
* Individually inspected for proper assembly and balance
Brand: Tilton Engineering
Manufacturer's Part Number: 56-308H
Part Type: Clutch Kits
Product Line: Tilton OT-Series Cerametallic Clutch Kits
HP Direct Part Number: TIL-56-308H
Clutch Usage: Performance
Clutch Disc Quantity: 2
Flywheel Included: Yes
Input Spline Quantity: 24
Input Shaft Diameter: 26.00mm
Disc Diameter (in.): 7.250 in.
Disc Diameter (mm): 184mm
Disc Material: Cerametallic
Disc Style: 4-paddle
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: No
Alignment Tool Included: No
Pilot Bushing Included: No
Flywheel Material: Billet steel
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Designed for use with Honda B16 and B18 applications. Capable of 480 ft.-lbs. torque capacity.
