Tilton 52-Series UTGC Driveline Packages 52-62630

Tilton 52-Series UTGC driveline packages are engineered to not only save you time, but also deliver the performance to reach your car-building goals. Matched components work together efficiently and are designed to offer the most ground clearance—an additional 2.2 inches—over most OE bellhousings. And for fast acceleration and deceleration, the included flywheel and clutch combo offers the lowest inertia possible in a rear-mount starter unit. Tilton 52-Series UTGC driveline packages are designed to simplify your car-building process, as well as deliver maximum performance, reliability, and ease of installation.

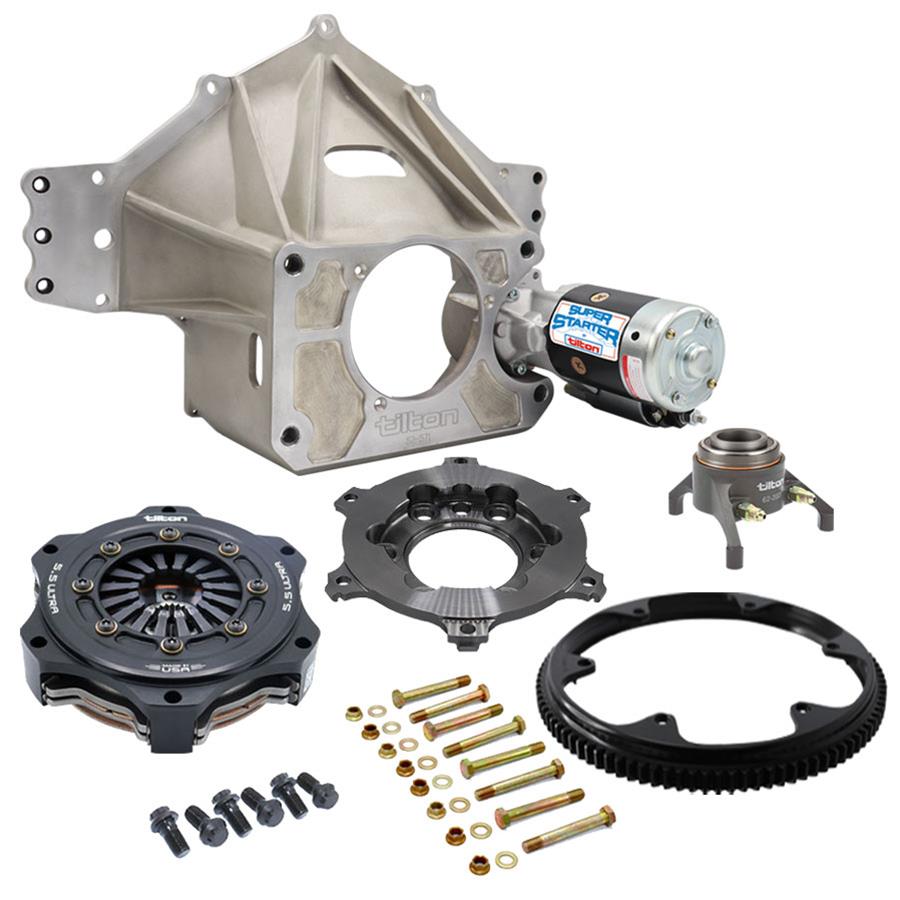

Tilton 52-Series UTGC driveline packages include:

* Rigid aluminum bellhousing for maximum power and minimum wear
* Clutch/flywheel assembly: race-proven OT-Series clutch and billet steel flywheel for balance, durability, and low inertia
* Hydraulic release bearing: billet aluminum body and piston, proprietary low-friction coatings, high-temperature quad tensioner monoseal, and high-quality 38mm contact diameter bearing maximizes clutch modulation
* Super Starter: rear mount severe-duty 3.0 hp starter
Brand: Tilton Engineering
Manufacturer's Part Number: 52-62630
Part Type: Clutch and Bellhousing Combos
Product Line: Tilton 52-Series UTGC Driveline Packages
HP Direct Part Number: TIL-52-62630
Clutch Disc Quantity: 3
Disc Style: 6-paddle
Disc Diameter (in.): 5.500 in.
Disc Diameter (mm): 140mm
Disc Material: Metallic
Pressure Plate Style: Diaphragm
Input Spline Quantity: 26
Input Shaft Diameter: 1.156 in.
Bellhousing Material: Magnesium
Bellhousing Color: Natural
Throwout Bearing Included: Yes
Flywheel Included: Yes
Balanced: Yes
Rear Main Seal Style: 1-piece, 2-piece
Engine Balance: Internal
Flywheel Material: Billet steel
Flywheel Bolts Included: Yes
Starter Included: Yes
Starter Rotation: Standard
Starter Bolts Included: No
Quantity: Sold as a kit.
