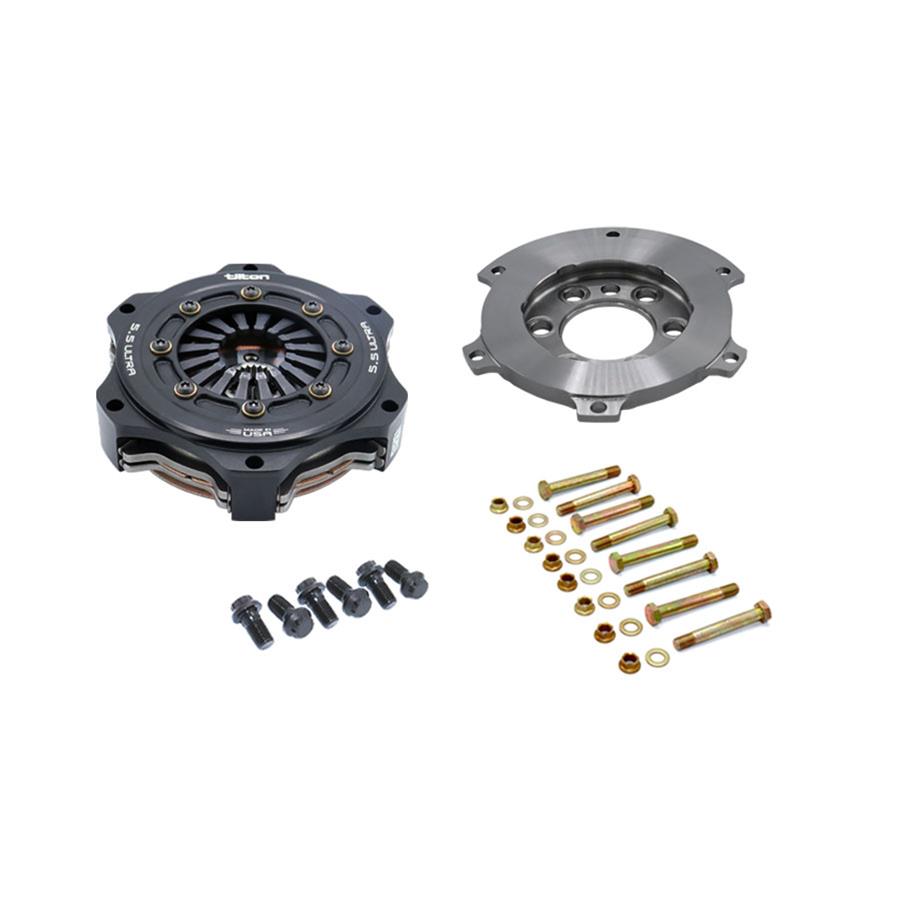

Tilton 5.5 Ultra Clutch Assemblies 57-4436

Tilton's 6-leg 5.5 Ultra clutch assemblies are a direct replacement or upgrade for the QM Optimum clutch—and they're Tilton's lightest weight 5.5 in. metallic racing clutch. The Ultras are designed and manufactured using proprietary materials and processes that increase service life of the clutch internals. They feature a rigid clutch cover that resists deflection, plus hardened steel thrust buttons installed into the legs—thus providing the most durability and highest performing clutch for the money, bar none. These clutches are rated for 500 lbs.-ft. of torque for two plate assemblies, and up to 750 lbs-ft. for three clutch units.Brand: Tilton Engineering
Manufacturer's Part Number: 57-4436
Part Type: Clutch Kits
Product Line: Tilton 5.5 Ultra Clutch Assemblies
HP Direct Part Number: TIL-57-4436
Clutch Usage: Performance
Clutch Disc Quantity: 2
Flywheel Included: Yes
Input Spline Quantity: 26
Input Shaft Diameter: 1.125 in.
Disc Diameter (in.): 5.500 in.
Disc Diameter (mm): 140mm
Disc Material: Metallic
Disc Style: 6-paddle
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: No
Alignment Tool Included: No
Pilot Bushing Included: No
Flywheel Material: Billet steel
Flywheel Bolt Quantity: 6
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
