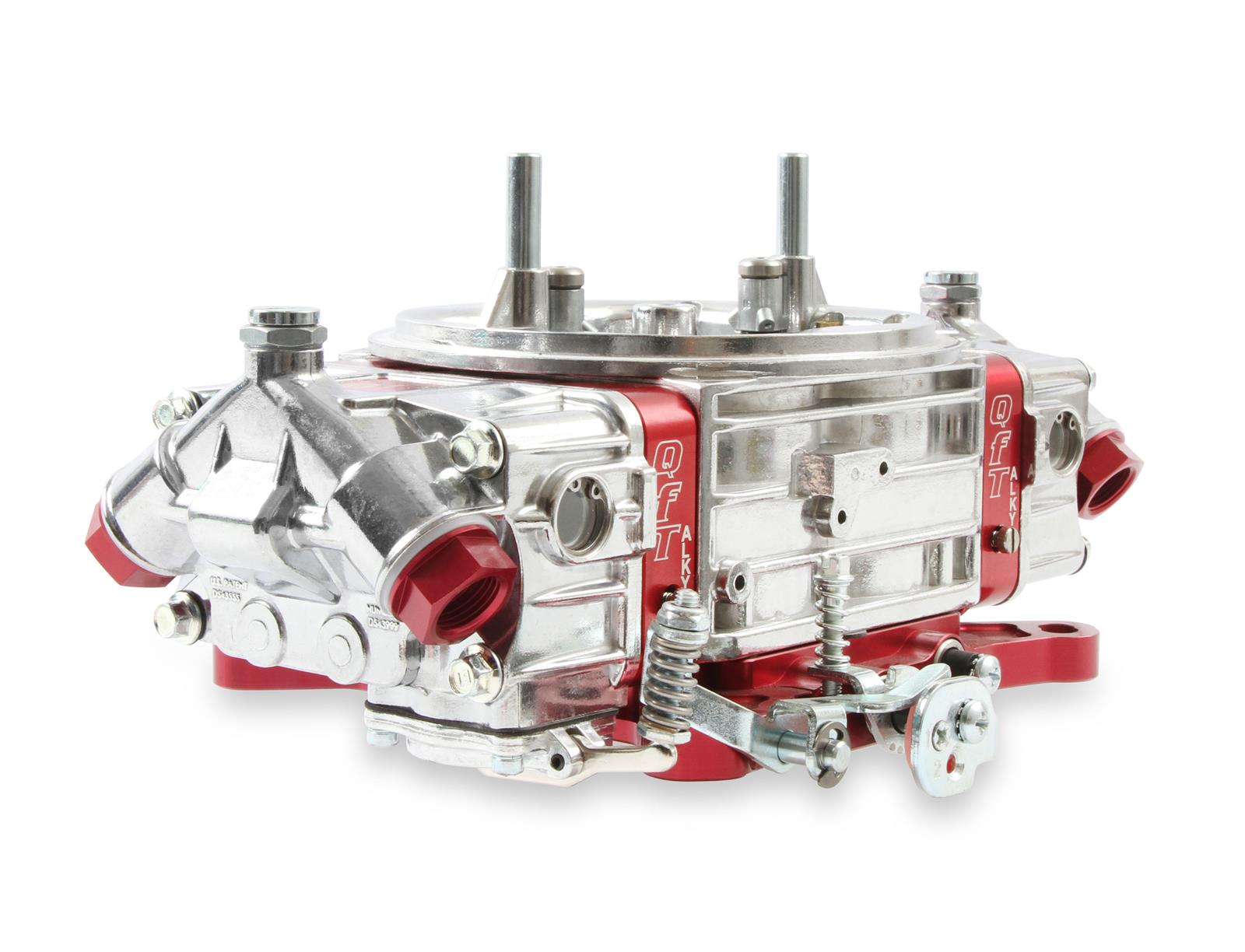

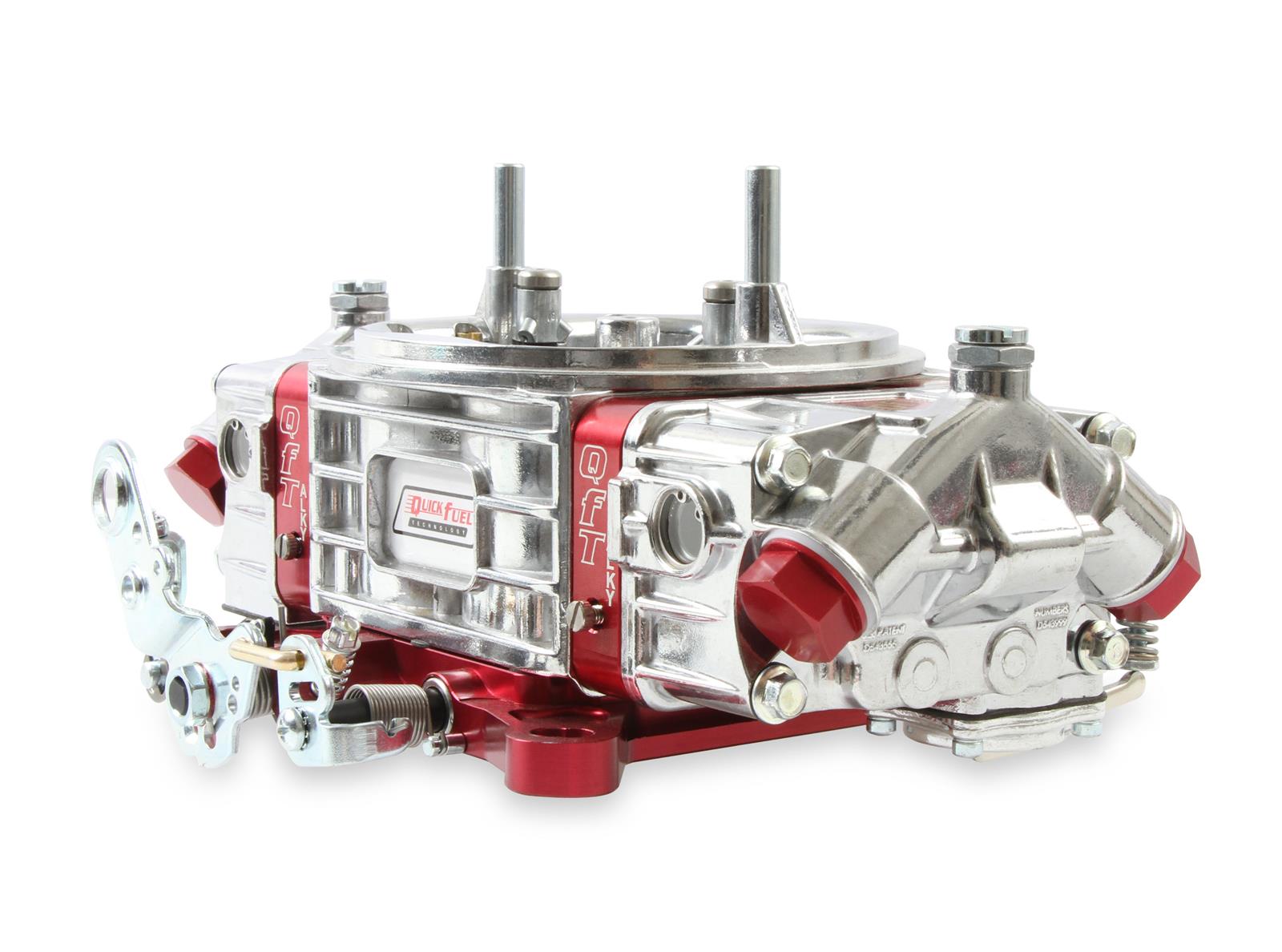

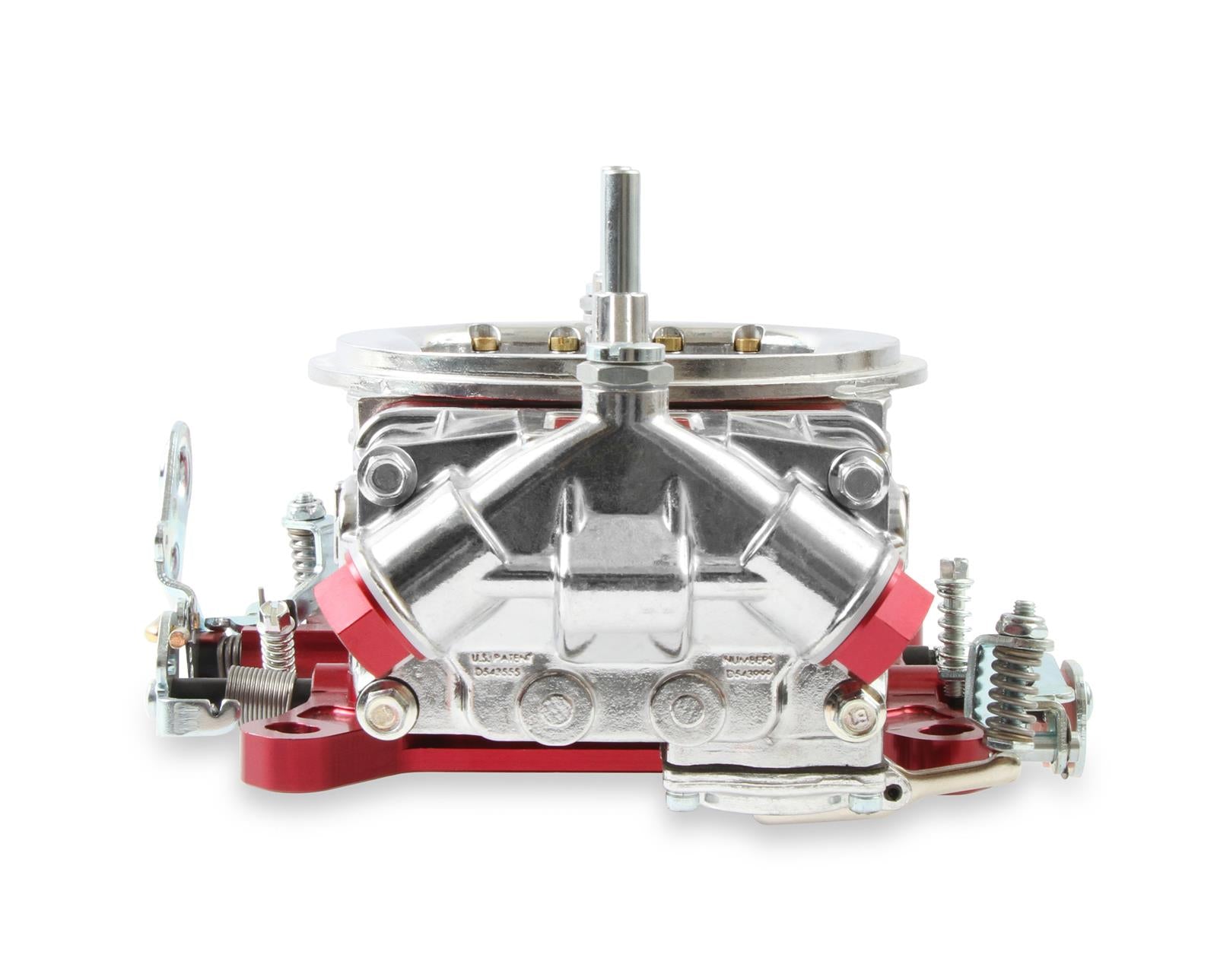

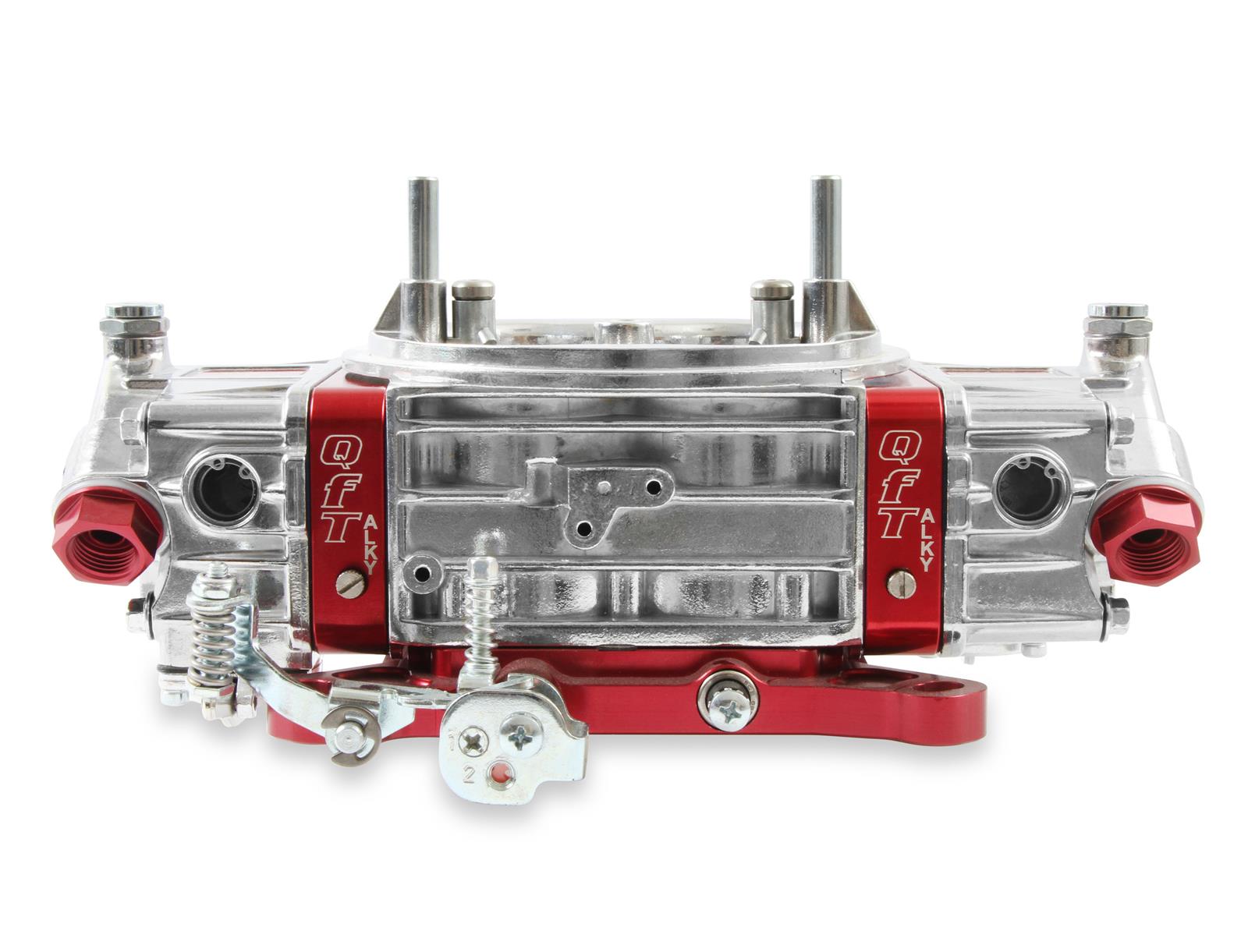

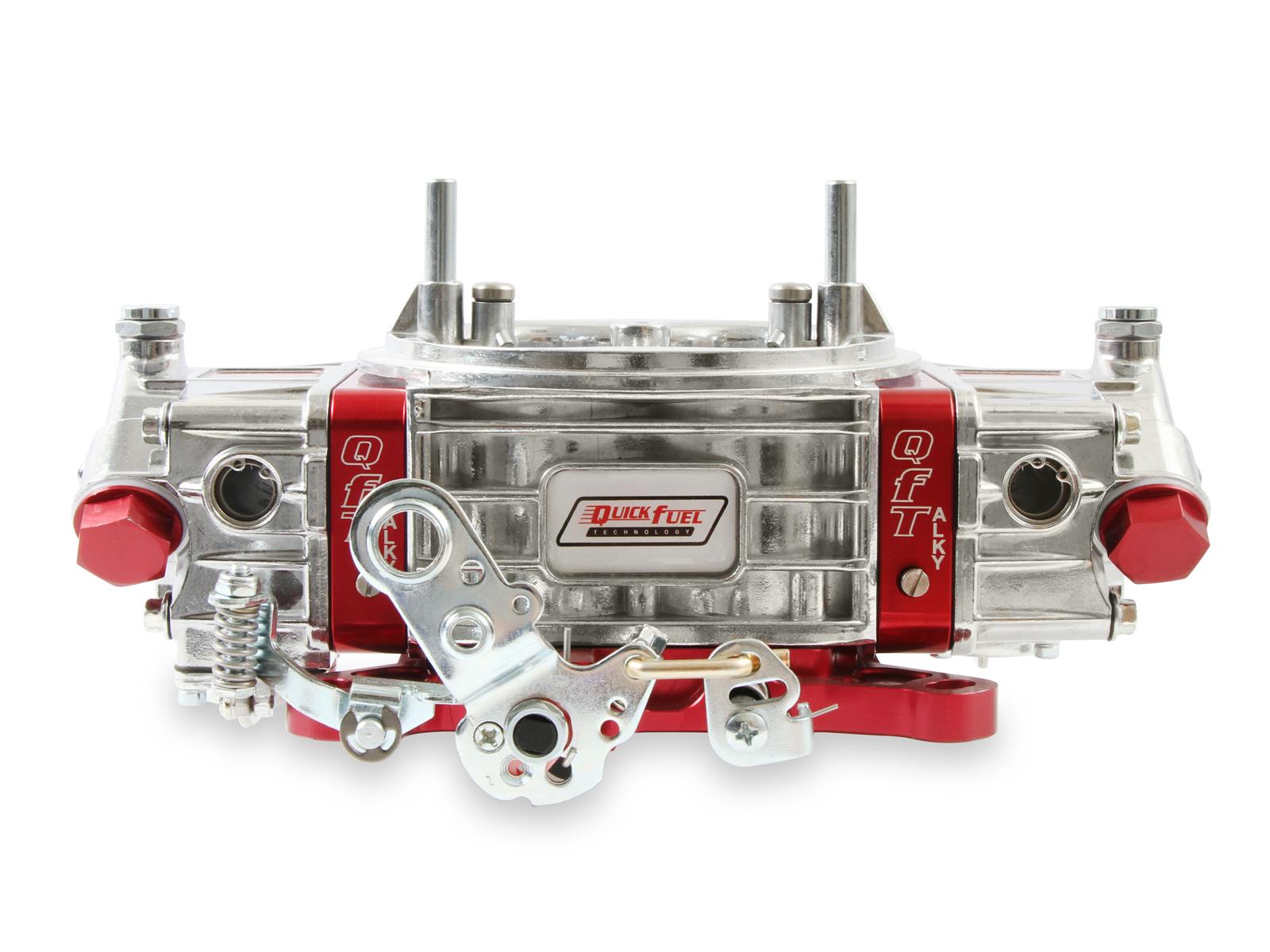

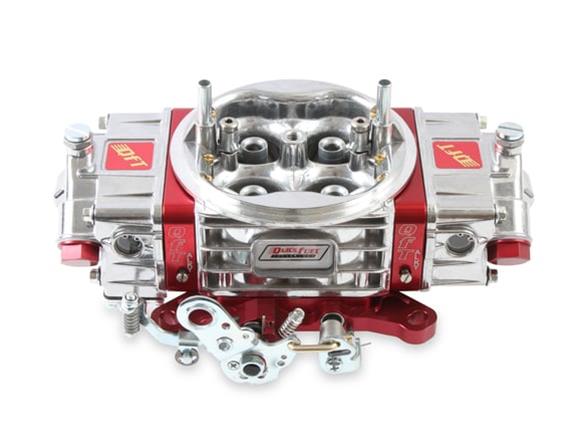

Quick Fuel Q-Series 4-Barrel Carburetors Q-950-A

Get big-time performance with Quick Fuel Q-Series 4-barrel carburetors with high-flow main bodies, which include either down-leg or annular boosters, screw-in idle and high-speed air bleeds, accelerator pump discharge nozzles, and a blended venturi area. These carburetors have CNC-machined billet metering blocks with 4-stage emulsion to provide more precise fuel metering, improve throttle response, and give a more uniform fuel performance curve. With so many great benefits and their blend of performance and drivability, it's no wonder that these Quick Fuel Q-Series carburetors are the popular choice. So, go ahead--throttle it up with Quick Fuel!Brand: Quick Fuel
Manufacturer's Part Number: Q-950-A
Part Type: Carburetors
Product Line: Quick Fuel Q-Series 4-Barrel Carburetors
HP Direct Part Number: QFT-Q-950-A
UPC: 849804001154
CFM: 950
Fuel Category: Alcohol
Remanufactured: No
Number of Barrels: 4
Carburetor Flange: Square bore
Choke: None
Secondary Type: Mechanical
Fuel Inlet: Dual
Primary Jet Size: 160
Primary Power Valve (Hg): 4.5 Hg
Secondary Jet Size: 160
Primary Outer Air Bleed Sizes Included: 53
Primary Inner Air Bleed Sizes Included: 31
Secondary Power Valve: Plug
Secondary Outer Air Bleed Sizes Included: 53
Secondary Inner Air Bleed Sizes Included: 31
Carburetor Color: Tumble polished
Ford Kickdown: No
Booster Type: Down-leg
Throttle Linkage Type: Universal
Carburetor Height (in.): 3.250 in.
Quantity: Sold individually.
Notes: Carburetor features a high-flow main body, billet metering blocks, and billet throttle baseplate. Fuel inlets are 7/8-20 in. thread.
