Quarter Master V-Drive Clutch and Bellhousing Kits 10029890ZZ

These Quarter Master V-Drive clutch and bellhousing kits offer the best balance of performance, durability, and affordability for the money. They feature an open cover, an 8-leg design for maximum strength and cooler operations, and a reduced moment of inertia for lightweight power transfer, making them perfect for sportsman Circle Track, road course, and off-road racers. Their premium internal friction materials can handle high-torque capacities.

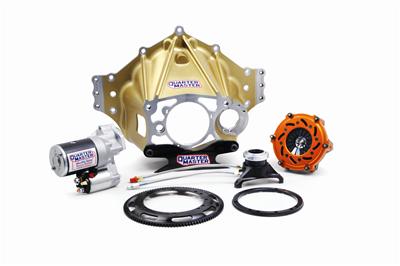

The kits also include:

* CAD-designed, CNC-machined aluminum or magnesium bellhousings
* V-Drive clutch system with button
* Steel flywheel
* Flywheel bolt kit
* Reverse mounted Ultra-Duty Quarter Master starter
* Fixed mount hydraulic release bearing with clutch inlet and bleed line kit
* Racer-rebuildable frictions and floaters to provide extended service lifeBrand: Quarter Master
Manufacturer's Part Number: 10029890ZZ
Part Type: Clutch and Bellhousing Combos
Product Line: Quarter Master V-Drive Clutch and Bellhousing Kits
HP Direct Part Number: QTM-10029890ZZ
Clutch Type: V-Drive
Clutch Disc Quantity: 2
Disc Style: Full face
Disc Diameter (in.): 7.250 in.
Disc Diameter (mm): 184mm
Disc Material: Sintered metallic
Pressure Plate Style: Diaphragm
Pressure Plate Static Pressure (lbs.): 665-715 lbs.
Input Spline Quantity: 26
Input Shaft Diameter: 1.156 in.
Bellhousing Material: Aluminum
Bellhousing Color: Natural
Throwout Bearing Included: Yes
Flywheel Included: Yes
Balanced: Yes
Rear Main Seal Style: 1-piece
Engine Balance: External
Flywheel Material: Billet steel
Flywheel Bolts Included: Yes
Starter Included: Yes
Starter Rotation: Reverse
Starter Bolts Included: Yes
Quantity: Sold as a kit.
Notes: Includes fixed mount Race release bearing.
