Quarter Master Pro-Series Clutch and Bellhousing Kits 10039590ZZ

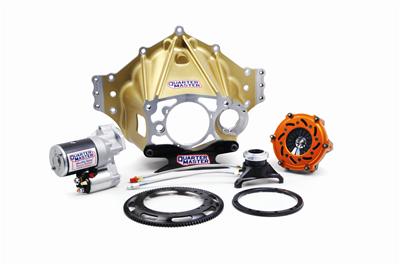

The staple of the Quarter Master clutch lineup, the Quarter Master Pro-Series clutch and bellhousing kits, are proven to offer unsurpassed performance and durability for racing and endurance applications. Their design provides a greatly reduced moment of inertia, making them the perfect option for road, speedway, and short track racing. The kits feature a CAD-designed bellhousing that is precision CNC-machined to ultra-tight tolerances for long-lasting durability. The included Pro-Series clutch is available in different sizes and offers either steel or aluminum covers, as well as different friction disc options. All Quarter Master Pro-Series clutch and bellhousing kits include a bellhousing, a Pro-Series clutch with a button and steel ring gear assembly, a flywheel bolt kit, and a fixed hydraulic throwout bearing with a clutch inlet and bleed line kit.Brand: Quarter Master
Manufacturer's Part Number: 10039590ZZ
Part Type: Clutch and Bellhousing Combos
Product Line: Quarter Master Pro-Series Clutch and Bellhousing Kits
HP Direct Part Number: QTM-10039590ZZ
Clutch Type: Pro-Series
Clutch Disc Quantity: 3
Disc Style: Full face
Disc Diameter (in.): 5.500 in.
Disc Diameter (mm): 139mm
Disc Material: Sintered metallic
Pressure Plate Style: Diaphragm
Pressure Plate Static Pressure (lbs.): 665-715 lbs.
Input Spline Quantity: 26
Input Shaft Diameter: 1.156 in.
Bellhousing Material: Aluminum
Bellhousing Color: Natural
Throwout Bearing Included: Yes
Flywheel Included: Yes
Balanced: Yes
Rear Main Seal Style: 1-piece
Engine Balance: External
Flywheel Material: Billet steel
Flywheel Bolts Included: Yes
Starter Included: Yes
Starter Rotation: Reverse
Starter Bolts Included: Yes
Quantity: Sold as a kit.
Notes: Includes fixed mount Race release bearing.
