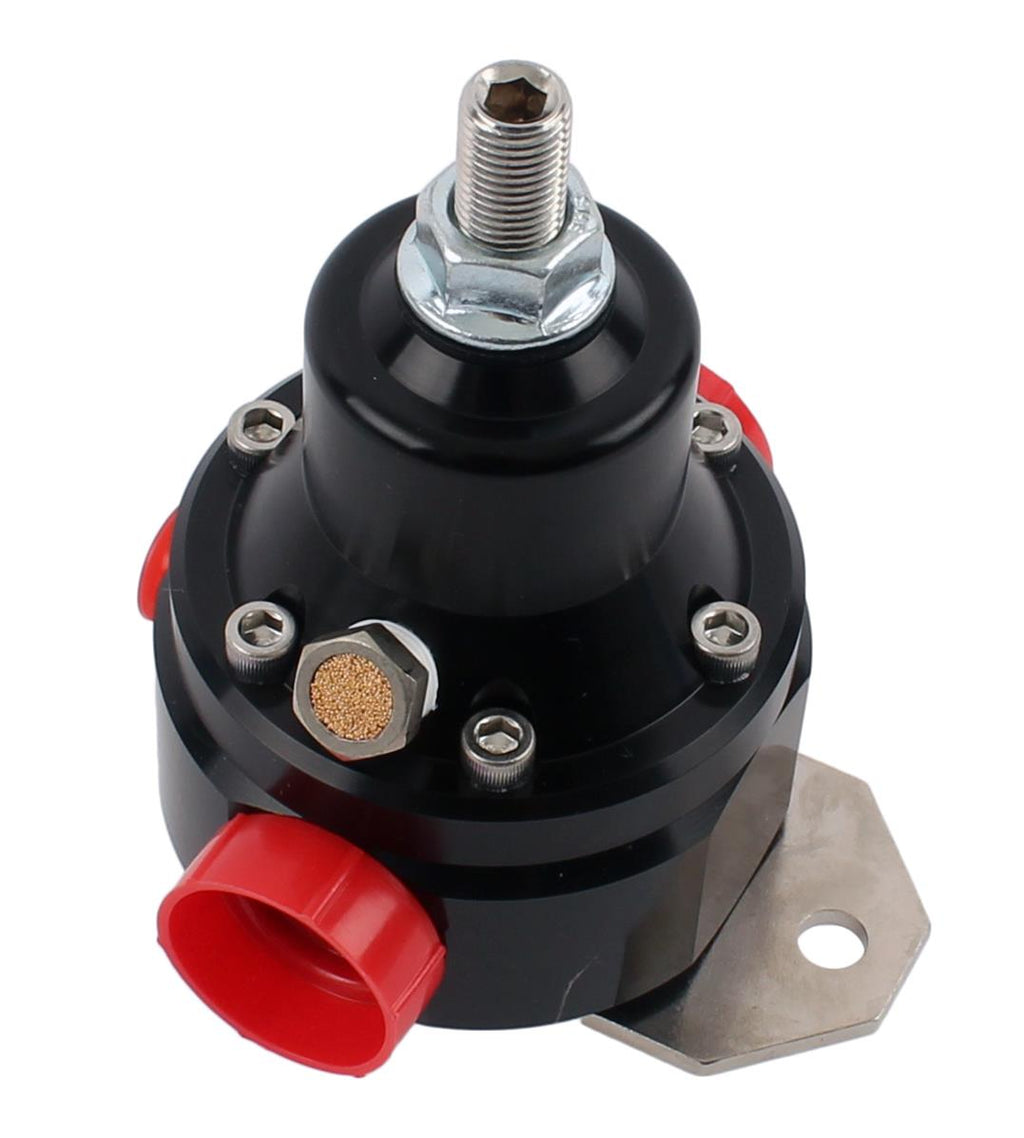

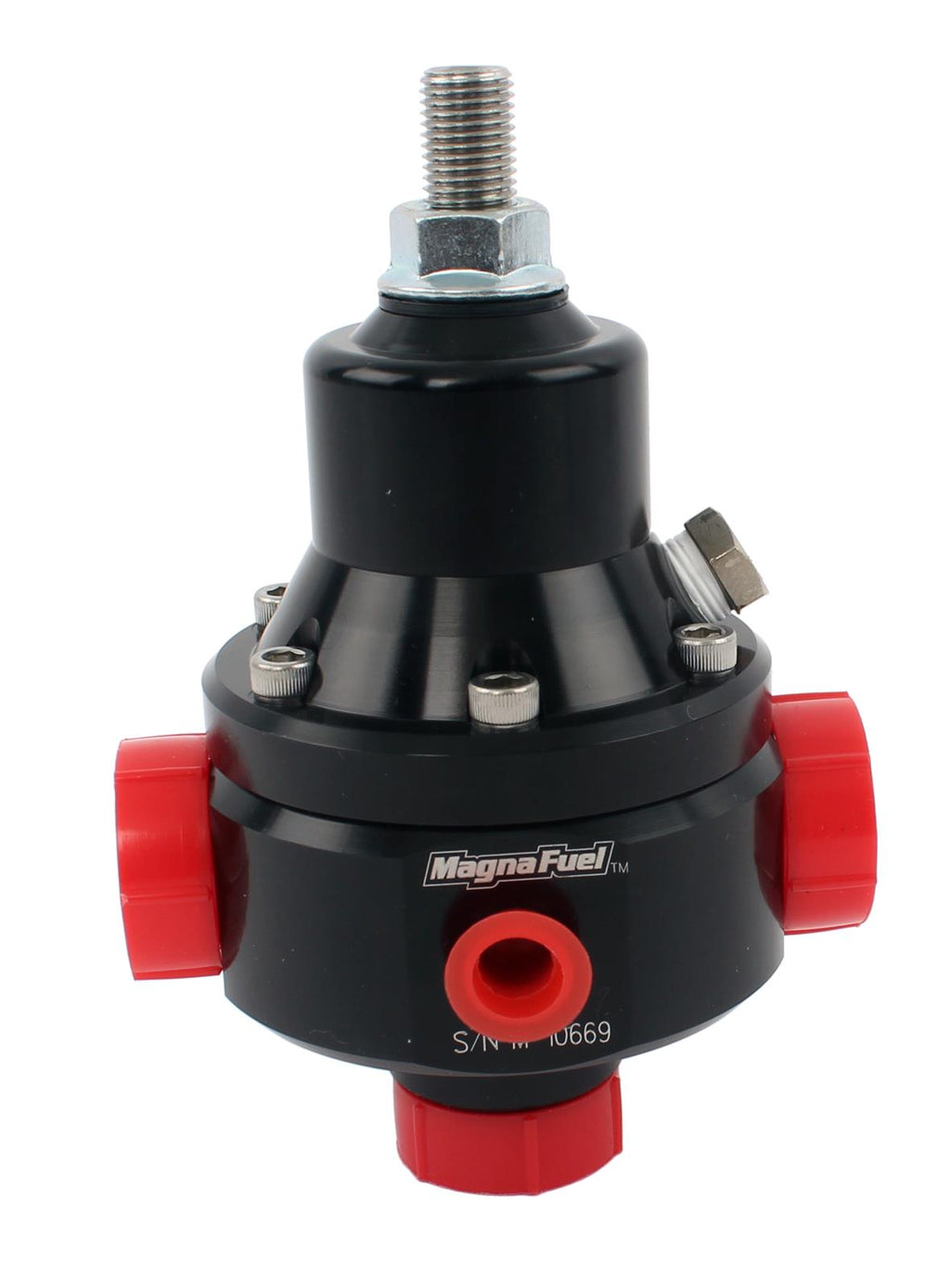

MagnaFuel EFI Fuel Pressure Control Units MP-9950-C-BLK

MagnaFuel EFI fuel pressure control units feature a unique guided-metering valve assembly to provide a more accurate metering of fuel flow and help reduce the pressure drop that can occur at high or sudden changes in fuel demand. The pressure control units are designed to work with the EFI 600 pump and are available in two sizes--large for applications of up to 2,000+ hp and standard for applications of up to 700 hp. Each of these units has a 1/8 in. NPT pressure port for a gauge, a filtered vent fitting or optional boost reference fitting, and is compatible with racing gasoline and alcohol. The units feature a CNC-machined, aircraft-quality aluminum body and are hand-assembled and flow-tested for maximum performance.Brand: MagnaFuel
Manufacturer's Part Number: MP-9950-C-BLK
Part Type: Fuel Pressure Regulators
Product Line: MagnaFuel EFI Fuel Pressure Control Units
HP Direct Part Number: MRF-MP9950CBLK
UPC: 819315003961
Regulator Pressure (psi): 18-50
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: No
Gauge Port: Yes
Inlet Quantity: 2
Regulator Inlet Size: -8 AN
Inlet Attachment: Female straight cut O-ring
Return Fitting Size: -8 AN
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: Yes
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Filtered vent fitting included.
