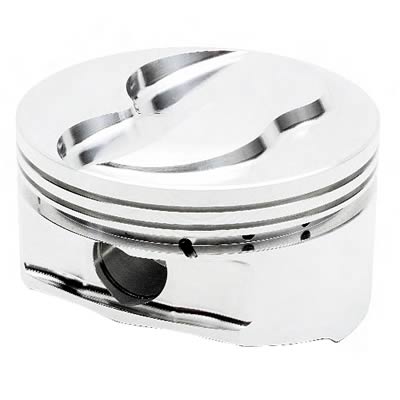

JE Pistons Sport Compact Pistons 186238

JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.Brand: JE Pistons
Manufacturer's Part Number: 186238
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-186238-6
UPC: 193564216557
Piston Rings Included: No
Bore (in.): 3.268 in.
Bore (mm): 83.000mm
Stroke: 3.552 in.
Engine Stroke Type: Stock
Rod Length: 6.457 in.
Piston Style: Flat top, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.275 in.
Piston Head Volume (cc): +5.10cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 6.
Notes: Suitable for nitrous. Full round skirt design.
