Injector Dynamics ID1700x Fuel Injectors 1700.48.11.14.3

Injector Dynamics ID1700x fuel injectors excel at high pressures typical of current automotive systems and will perform flawlessly in those types of applications. They feature corrosion-resistant internals making them compatible with all known automotive fuels, and a unique magnetic circuit that makes them immune to voltage and pressure sensitivity problems that plague other high-impedance, high-flow injectors.

Being all-fuel compatible and capable of very high flow rates, the ID1700x injectors are ideally suited for delivering E85 to boosted engines, or occasionally, gasoline in extreme high-horsepower applications.
Brand: Injector Dynamics
Manufacturer's Part Number: 1700.48.11.14.3
Part Type: Fuel Injectors
Product Line: Injector Dynamics ID1700x Fuel Injectors
HP Direct Part Number: IJD-17004811143
OEM Replacement: No
Injector Advertised Flow Rate (lbs./hr.): 164 lbs./hr.
Injector Advertised Flow Rate (cc/min.): 1,725.0cc/min.
Injector Plug Style: USCAR
Injector Body Style: EV14
Injector Impedance: 8.5 ohms
Driver Type: 12V saturated circuit

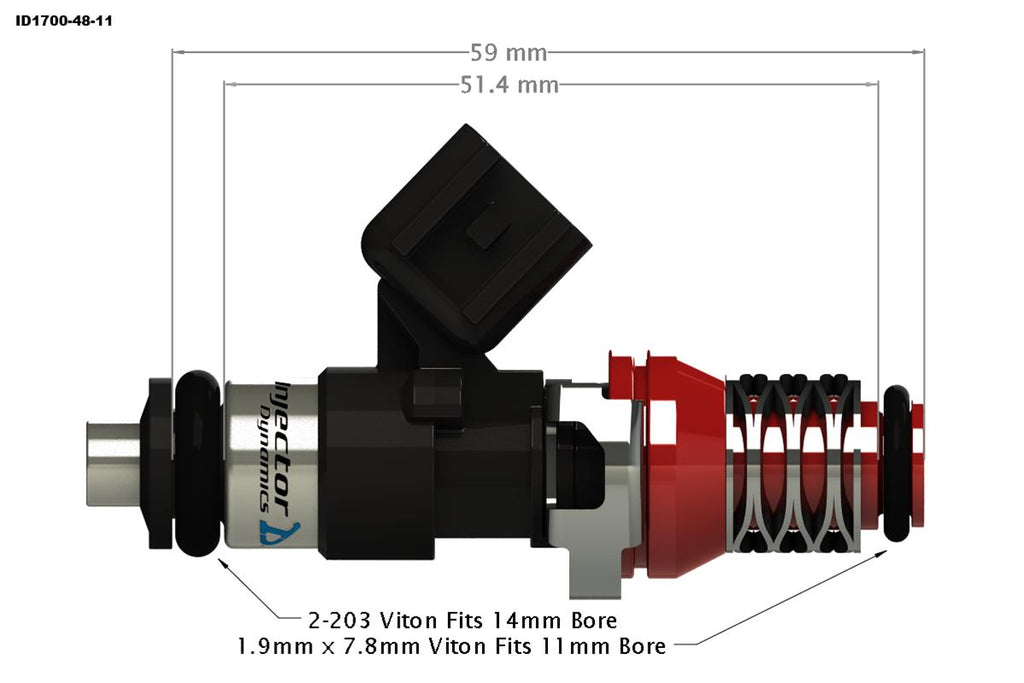

Overall Height (in.): 2.61 in.
Manifold O-Ring Outside Diameter (in.): 0.550 in.
Fuel Rail O-Ring Outside Diameter (in.): 0.433 in.
Wiring Harness Included: No
O-Rings Included: No
Remanufactured: No
Quantity: Sold as a set of 3.
