Description
Go Fast Bits D-Force Diesel Electronic Boost Controllers are the perfect partner for all turbo diesel engines that use a pneumatic wastegate. With six boost presets and a timed scramble feature that can be selected on-the-fly, the D-Force can adjust your boost for all driving conditions—such as overtaking, towing, economy, racing, or even protecting the engine. As any modified turbo diesel owner knows, it's important to monitor EGT (Exhaust Gas Temperature) to avoid costly engine damage. Not only can the D-Force control your boost, but it can also display EGT! No other EBC offers the features, control, and ease of use like the D-Force. Order the D-Force with or without an EGT sensor.
Additional details:
D-FORCE GIVES YOU ULTIMATE CONTROL OF YOUR BOOST PRESSURE! Want to adjust boost for towing? Change it if EGT gets too high? Have multiple settings for different driving conditions? Bring boost on earlier or hold it longer? The D-Force can do all of this and more! Using a unique boost control strategy, D-Force lets you adjust the boost rise rate, peak boost, and closed-loop correction. There are six boost presets (plus an extra one dedicated to the scramble feature) that you can set up with different boost parameters for different driving conditions, and then activate them on-the-fly or at the press of a button. The unique scramble feature can be set up for a variety of purposes. It can raise or lower boost when activated with the screen button, or via the auxiliary input using a switch, button, or ECU output. For example, you could use it to lower boost pressure for safety by connecting it to an existing warning light, or instantly access high boost by pressing a button or flipping a switch.
* The D-Force can also display Exhaust Gas Temperature and has a user-adjustable warning. This feature requires the EGT plug-in module, which includes a stainless steel EGT probe and weld-on exhaust bung, along with the module to connect it to the D-Force wiring loom. The D-Force kit is available with or without the EGT plug-in module, and the module is also available separately.
* The controller interface is easy to use with touch-buttons and one-touch menu navigation. The boost pressure units can be displayed in psi, bar, kPa—and the peak recall feature lets you see your peak boost after each boost event.
* 50 psi capability!
* Closed-loop boost control strategy—for the fastest possible boost rise rate and minimum drop off at high RPM, the adjustable closed-loop logic helps prevent boost variations that can occur in different gears, RPM ranges, and atmospheric conditions.
* Remote input trigger: Connect the remote input wire to a switch, button, warning light or ECU output to change boost presets or activate scramble boost.
* Over-boost warning/cut: User adjustable warning to indicate if the boost pressure is too high and to cut the solenoid to lower boost and protect the engine.

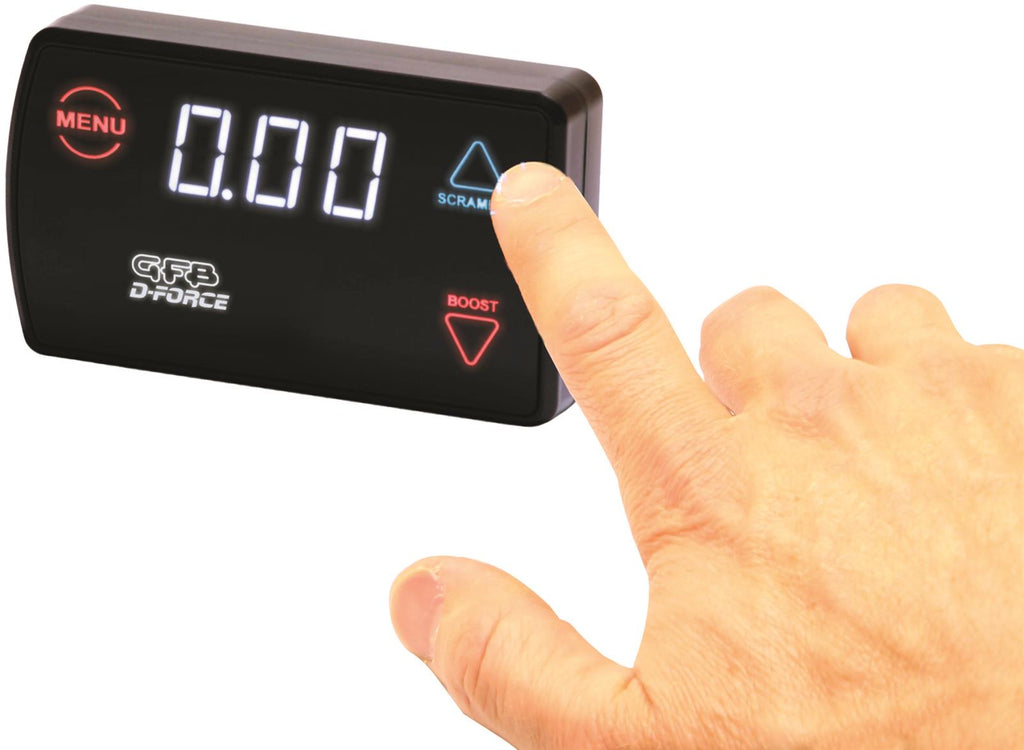

* Touch screen interface with simple menu navigation: Capacitive touch screen and single-touch menu navigation makes setup exceptionally easy. Scrolling text also means you always know where you are in the menu.

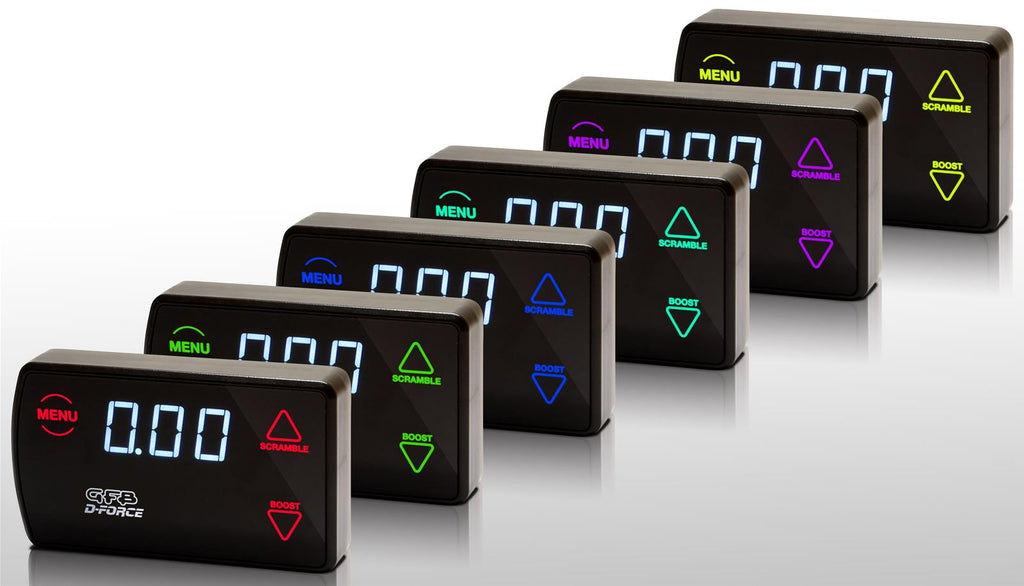

* Choose your screen color: You can set the button illumination to any one of six different colors to match your car's dash.
Brand: Go Fast Bits
Manufacturer's Part Number: 3006
Part Type: Boost Controllers
Product Line: Go Fast Bits D-Force Diesel Electronic Boost Controllers
HP Direct Part Number: GFS-3006
UPC: 9328022003054
Boost Controller Type: Electronic
Boost Controller Style: Six stage
Adjustable: Yes
Boost Range (psi): 0-50 psi
Wastegate Type: Electrical
Quantity: Sold individually.
Notes: EGT sensor not included. Fits foreign model Toyota Surf KZN130 1993-95 2.4L/ 3.0L,Toyota Landcruiser HZN75, 2000-07 Toyota Landcruiser HDJ, Toyota Prado KZJ120 1KZ-TE, Toyota Hilux KZN165/KZN205 1997-05 1KZ-T, Nissan Patrol Y60 2.8L/4.2L 1988-97, Nissan Patrol Y61 TD42, 1998-03, Mitsubishi Pajero 1990-99 2.5L 4D56.
Additional details:
D-FORCE GIVES YOU ULTIMATE CONTROL OF YOUR BOOST PRESSURE! Want to adjust boost for towing? Change it if EGT gets too high? Have multiple settings for different driving conditions? Bring boost on earlier or hold it longer? The D-Force can do all of this and more! Using a unique boost control strategy, D-Force lets you adjust the boost rise rate, peak boost, and closed-loop correction. There are six boost presets (plus an extra one dedicated to the scramble feature) that you can set up with different boost parameters for different driving conditions, and then activate them on-the-fly or at the press of a button. The unique scramble feature can be set up for a variety of purposes. It can raise or lower boost when activated with the screen button, or via the auxiliary input using a switch, button, or ECU output. For example, you could use it to lower boost pressure for safety by connecting it to an existing warning light, or instantly access high boost by pressing a button or flipping a switch.
* The D-Force can also display Exhaust Gas Temperature and has a user-adjustable warning. This feature requires the EGT plug-in module, which includes a stainless steel EGT probe and weld-on exhaust bung, along with the module to connect it to the D-Force wiring loom. The D-Force kit is available with or without the EGT plug-in module, and the module is also available separately.
* The controller interface is easy to use with touch-buttons and one-touch menu navigation. The boost pressure units can be displayed in psi, bar, kPa—and the peak recall feature lets you see your peak boost after each boost event.
* 50 psi capability!
* Closed-loop boost control strategy—for the fastest possible boost rise rate and minimum drop off at high RPM, the adjustable closed-loop logic helps prevent boost variations that can occur in different gears, RPM ranges, and atmospheric conditions.
* Remote input trigger: Connect the remote input wire to a switch, button, warning light or ECU output to change boost presets or activate scramble boost.
* Over-boost warning/cut: User adjustable warning to indicate if the boost pressure is too high and to cut the solenoid to lower boost and protect the engine.
* Touch screen interface with simple menu navigation: Capacitive touch screen and single-touch menu navigation makes setup exceptionally easy. Scrolling text also means you always know where you are in the menu.
* Choose your screen color: You can set the button illumination to any one of six different colors to match your car's dash.
Brand: Go Fast Bits
Manufacturer's Part Number: 3006
Part Type: Boost Controllers
Product Line: Go Fast Bits D-Force Diesel Electronic Boost Controllers
HP Direct Part Number: GFS-3006
UPC: 9328022003054
Boost Controller Type: Electronic
Boost Controller Style: Six stage
Adjustable: Yes
Boost Range (psi): 0-50 psi
Wastegate Type: Electrical
Quantity: Sold individually.
Notes: EGT sensor not included. Fits foreign model Toyota Surf KZN130 1993-95 2.4L/ 3.0L,Toyota Landcruiser HZN75, 2000-07 Toyota Landcruiser HDJ, Toyota Prado KZJ120 1KZ-TE, Toyota Hilux KZN165/KZN205 1997-05 1KZ-T, Nissan Patrol Y60 2.8L/4.2L 1988-97, Nissan Patrol Y61 TD42, 1998-03, Mitsubishi Pajero 1990-99 2.5L 4D56.
