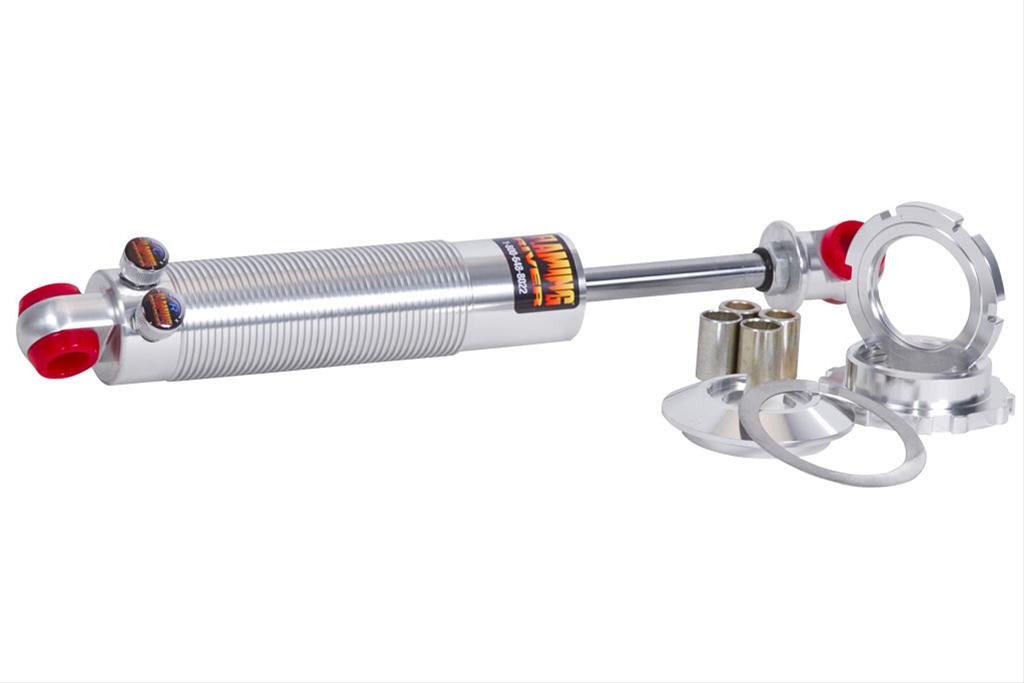

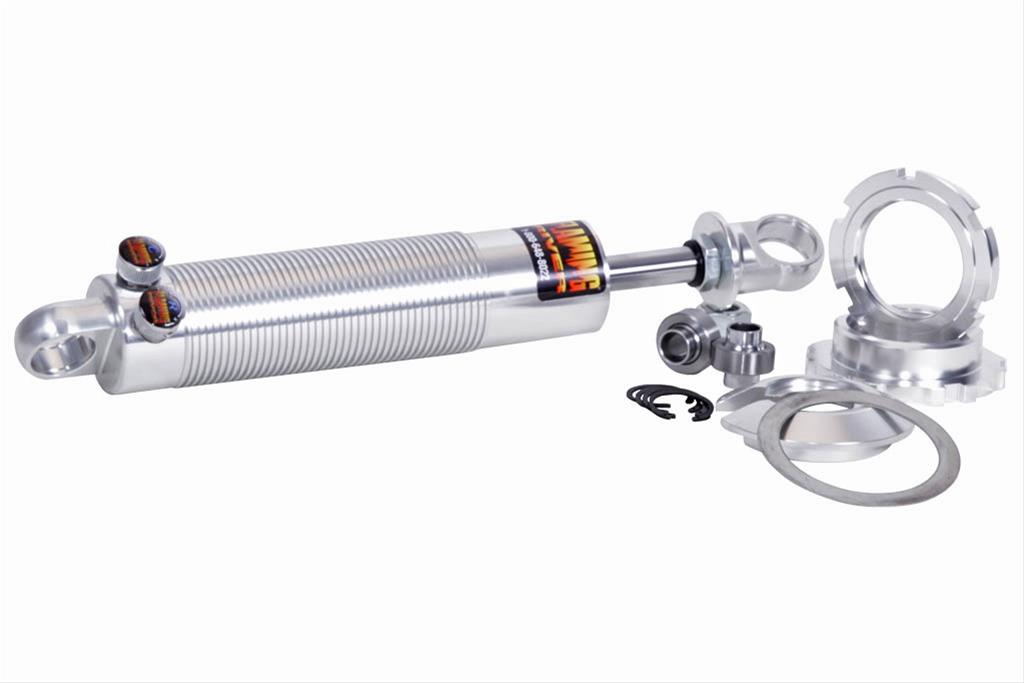

Flaming River Dual Adjustable Coilover Shocks FR70074

Flaming River dual adjustable coilover shocks allow for independent adjustment of the compression and rebound settings--19 positions of compression and 19 positions of rebound adjustments allow for a total of 361 different valving combinations. They feature a lightweight, aluminum twin-tube design with a sleek, clear anodized finish. They feature a machined aluminum piston with deflective disk technology and a PTFE/bronze piston seal, a 5/8 in. centerless ground hard chrome-plated piston rod, and an advanced 3-step sealing system.Brand: Flaming River
Manufacturer's Part Number: FR70074
Part Type: Coilover Shocks and Struts
Product Line: Flaming River Dual Adjustable Coilover Shocks
HP Direct Part Number: FLA-FR70074
Coilover Shock Type: Double-adjustable
Shock Body Material: Aluminum
Shock Body Finish: Silver
Adjustable Valving: Yes
Number of Valving Selections: 361
Extended Length (in.): 23.54
Collapsed Length (in.): 14.85
Upper Mount: Eyelet
Lower Mount: Eyelet
Internal Design: Twin-tube
Gas Charged: Yes
Bushing Material: Polyurethane
Bushing Color: Red
Coilover Springs Included: No
Recommended Minimum Spring Length (in.): 14.00 in.
Recommended Maximum Spring Length (in.): 14.00 in.
Adjustable Mounting Bracket Included: Yes
Hardware Included: Yes
Quantity: Sold individually.
Notes: Recommended ride height is 18 5/16 in.-20 1/16 in.
