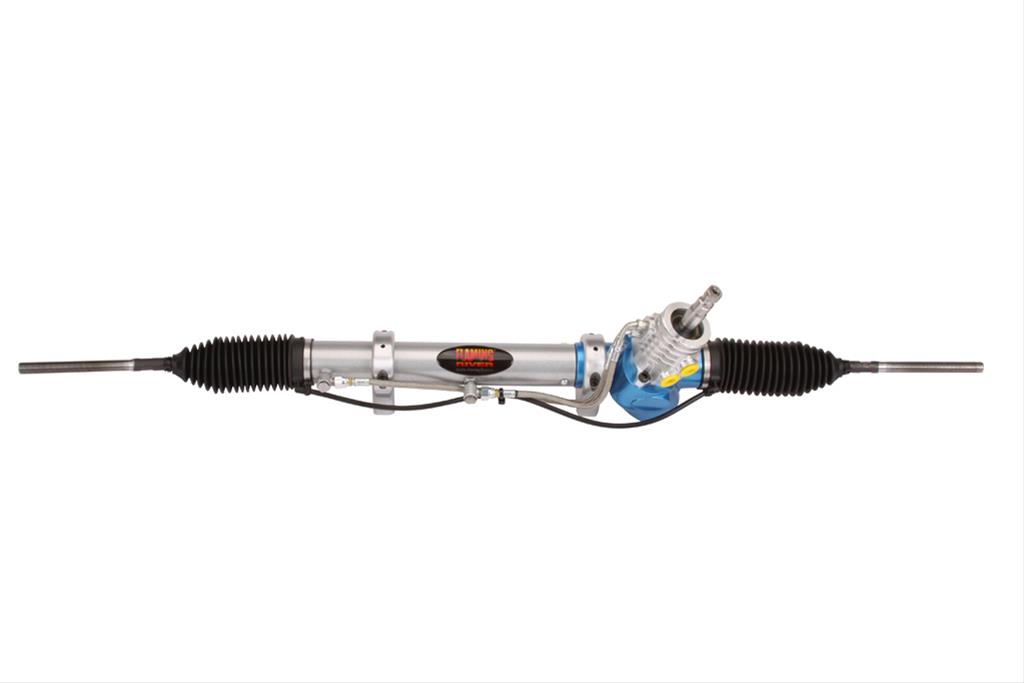

Flaming River Cast Rear Steer Power Rack and Pinions FR40020-S

Flaming River cast rear steer power rack and pinions are manufactured using all-new components, including the cast valve and piston, and are designed to fit any classic rear steer vehicle where the rack mounts behind the front spindles. They are available in different lengths and have an optional power steering pump and pulley assembly available.Brand: Flaming River
Manufacturer's Part Number: FR40020-S
Part Type: Rack and Pinions
Product Line: Flaming River Cast Rear Steer Power Rack and Pinions
HP Direct Part Number: FLA-FR40020-S
Steering Rack Type: Hydraulic power assist
Input Shaft Spline Size: 3/4 in. pyramid
Steering Rack Location: Rear
Length (in.): 45.000 in.
Rack Travel (in.): 6.000 in.
Turns Lock to Lock: 2.70
Mounting Brackets Included: Yes
Bushings Included: No
Tie Rod Ends Included: No
Rack Housing Diameter (in.): 2.150 in.
Steering Shaft Included: No
Power Steering Pump Included: Yes
Power Steering Lines Included: No
Rack Material: Aluminum
Rack Color: Silver
Remanufactured: No
Quantity: Sold as a kit.
Notes: Rear steer rack only. Blue powdercoated valve housing, includes serpentine power steering pump pulley. Please click the "Required Parts" tab and select the appropriate steering U-joint for your application.
