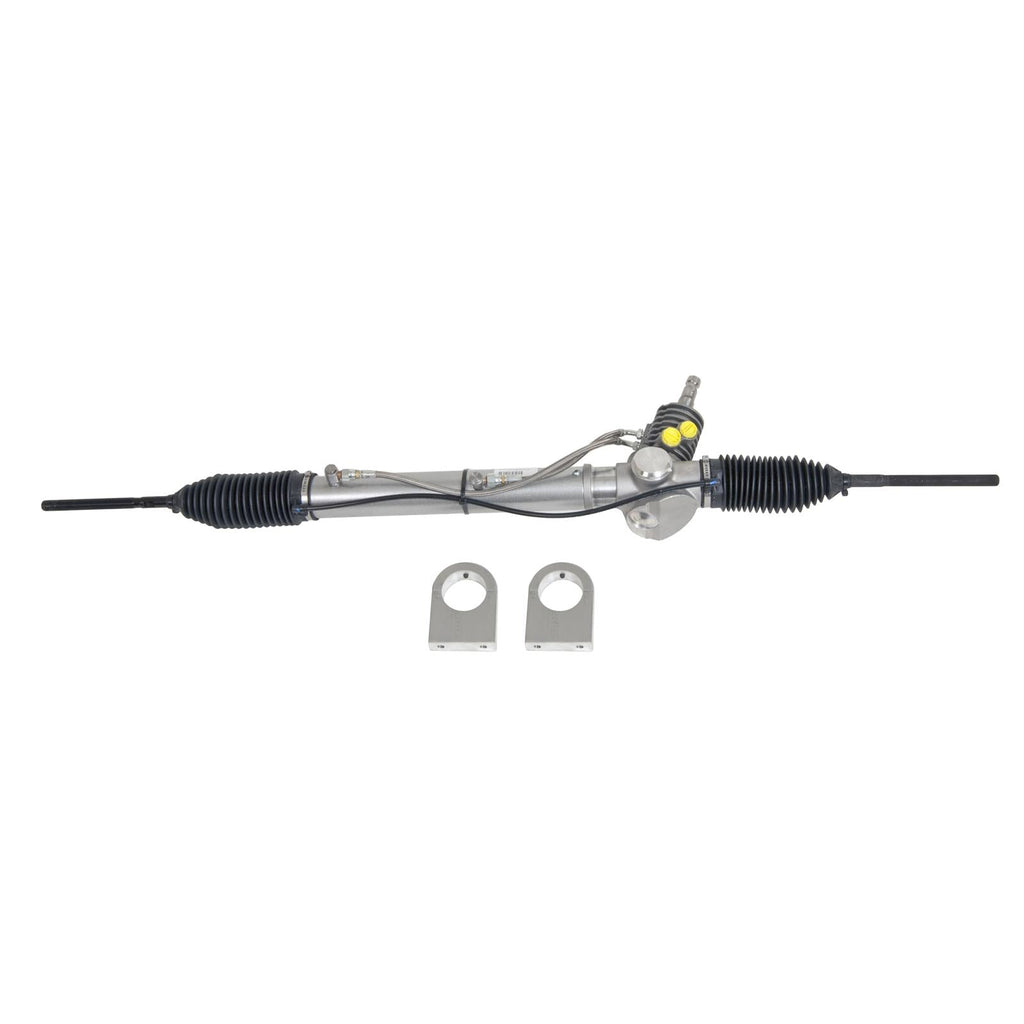

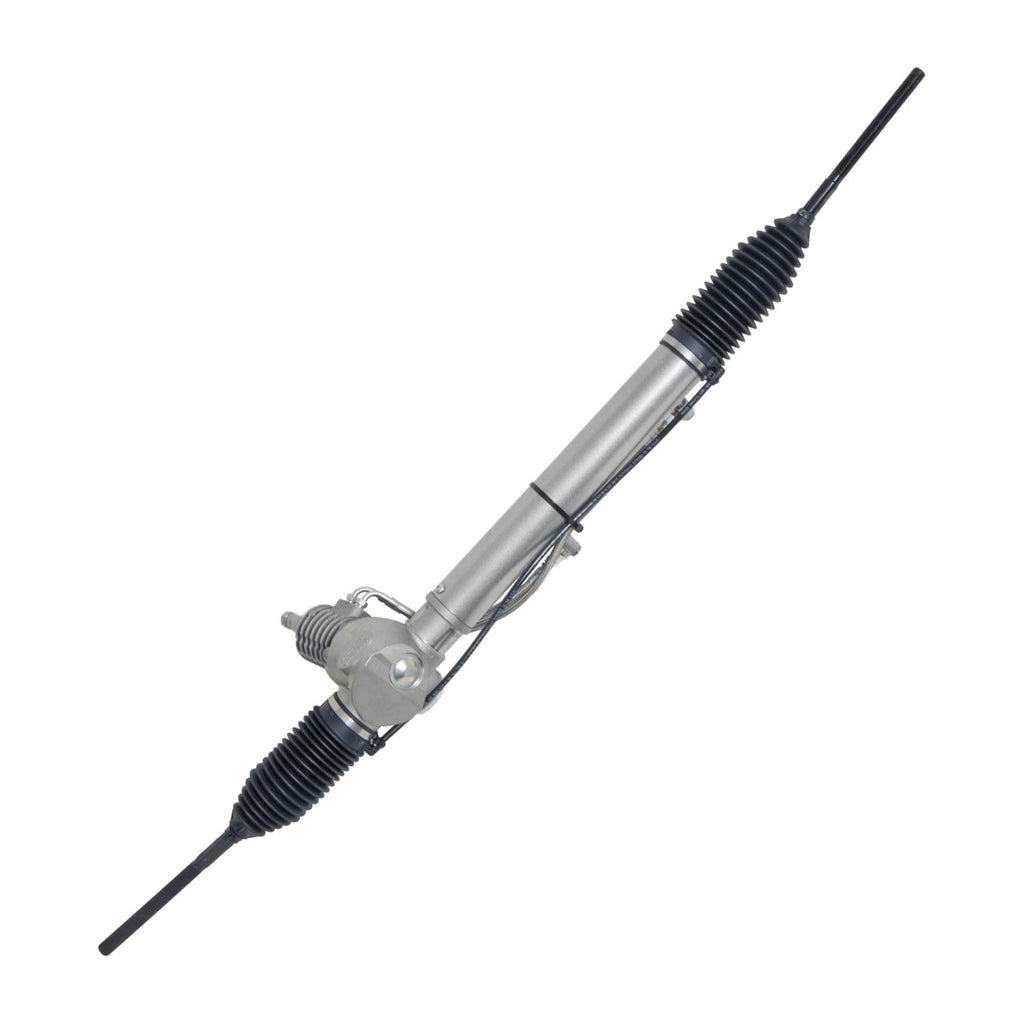

Flaming River Cast Front Steer Power Rack and Pinions FR40022PLN

These Flaming River cast front steer power rack and pinions are manufactured using all-new components, including the cast valve and piston. They are designed to fit any classic front steer vehicle where the rack mounts in front of the spindles. They are available in different lengths and have an optional power steering pump and pulley assembly available.Brand: Flaming River
Manufacturer's Part Number: FR40022PLN
Part Type: Rack and Pinions
Product Line: Flaming River Cast Front Steer Power Rack and Pinions
HP Direct Part Number: FLA-FR40022PLN
Steering Rack Type: Hydraulic power assist
Input Shaft Spline Size: 3/4 in. pyramid
Steering Rack Location: Front
Length (in.): 45.000 in.
Rack Travel (in.): 6.000 in.
Turns Lock to Lock: 2.70
Mounting Brackets Included: Yes
Bushings Included: No
Tie Rod Ends Included: No
Rack Housing Diameter (in.): 2.150 in.
Steering Shaft Included: No
Power Steering Pump Included: No
Power Steering Lines Included: No
Rack Material: Aluminum
Rack Color: Silver
Remanufactured: No
Quantity: Sold as a kit.
Notes: Plain valve housing. Please click the "Required Parts" tab and select the appropriate steering U-joint for your application.
