Description

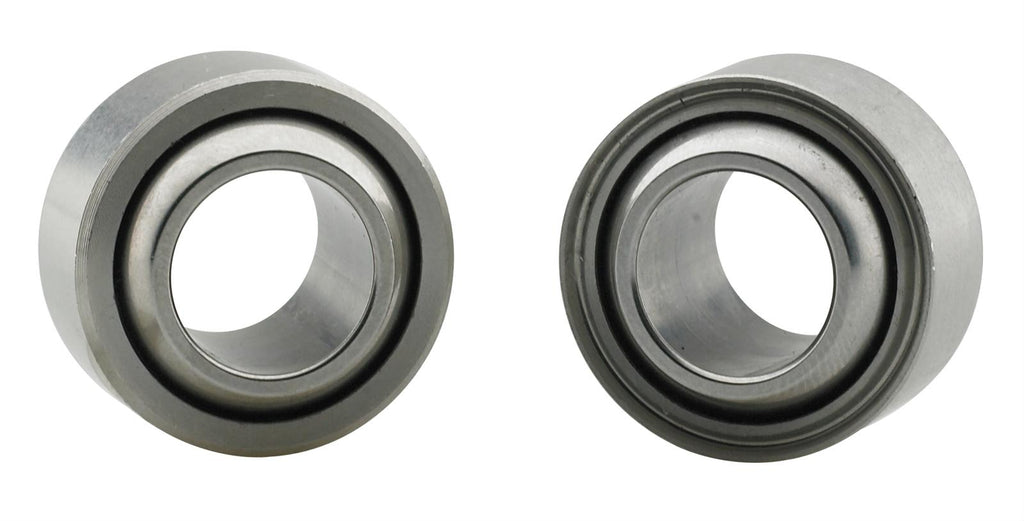

FK WSSX-T/WSSX-TV Wide Series spherical bearings are a great choice for fabricating long travel suspension arms and links. They're made from heat-treated stainless steel with a PTFE liner for durability. FK's self-lubricating PTFE liners are chemically bonded to the inner diameter's race, offering a high load-carrying capacity with increased dynamic wear characteristics. Order the size and style of Wide Series spherical bearings designed to fit your application.
WSSX-T/WSSX-TV bearings offer:
* Optional staking groove
* 440C heat-treated stainless steel ball
* 17-4 PH heat-treated stainless steel raceBrand: FK Rod Ends
Manufacturer's Part Number: WSSX3T
Part Type: Rod End Receiver Bearings
Product Line: FK WSSX-T/WSSX-TV Wide Series Spherical Bearings
HP Direct Part Number: FKB-WSSX3T
UPC: 800199690316
Receiver Race Diameter: 0.6250 in.
Race Width: 0.327 in.
Inner Ball Width: 0.437 in.
Inner Ball Diameter: 0.1900 in.
Rod End Ball Diameter: 0.531 in.
Rod End Misalign Angle: 15 degrees
ULT. Static Radial Load (lbs.): 4,900 lbs.
Rod End Bearing Material: Stainless steel
Quantity: Sold individually.
WSSX-T/WSSX-TV bearings offer:
* Optional staking groove
* 440C heat-treated stainless steel ball
* 17-4 PH heat-treated stainless steel raceBrand: FK Rod Ends
Manufacturer's Part Number: WSSX3T
Part Type: Rod End Receiver Bearings
Product Line: FK WSSX-T/WSSX-TV Wide Series Spherical Bearings
HP Direct Part Number: FKB-WSSX3T
UPC: 800199690316
Receiver Race Diameter: 0.6250 in.
Race Width: 0.327 in.
Inner Ball Width: 0.437 in.
Inner Ball Diameter: 0.1900 in.
Rod End Ball Diameter: 0.531 in.
Rod End Misalign Angle: 15 degrees
ULT. Static Radial Load (lbs.): 4,900 lbs.
Rod End Bearing Material: Stainless steel
Quantity: Sold individually.
