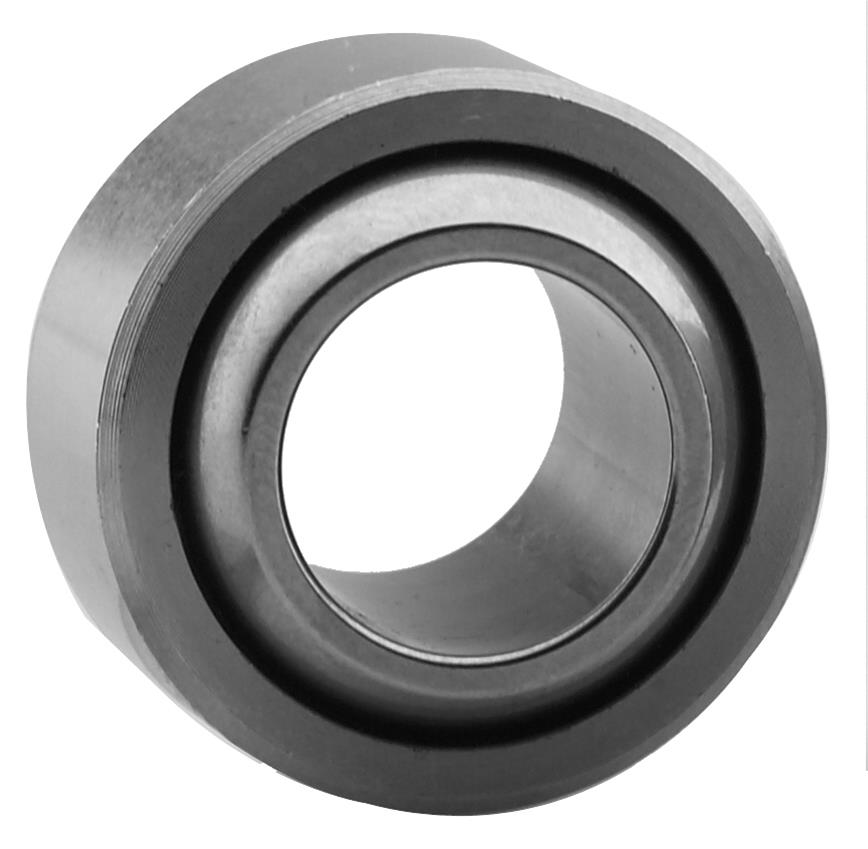

FK WSSX-T/WSSX-TV Wide Series Spherical Bearings WSSX10T-F1

FK WSSX-T/WSSX-TV Wide Series spherical bearings are a great choice for fabricating long travel suspension arms and links. They're made from heat-treated stainless steel with a PTFE liner for durability. FK's self-lubricating PTFE liners are chemically bonded to the inner diameter's race, offering a high load-carrying capacity with increased dynamic wear characteristics. Order the size and style of Wide Series spherical bearings designed to fit your application.

WSSX-T/WSSX-TV bearings offer:

* Optional staking groove
* 440C heat-treated stainless steel ball
* 17-4 PH heat-treated stainless steel raceBrand: FK Rod Ends
Manufacturer's Part Number: WSSX10T-F1
Part Type: Rod End Receiver Bearings
Product Line: FK WSSX-T/WSSX-TV Wide Series Spherical Bearings
HP Direct Part Number: FKB-WSSX10T-F1
UPC: 800199691016
Receiver Race Diameter: 1.1875 in.
Race Width: 0.567 in.
Inner Ball Width: 0.750 in.
Inner Ball Diameter: 0.6250 in.
Rod End Ball Diameter: 1.062 in.
Rod End Misalign Angle: 12 degrees
ULT. Static Radial Load (lbs.): 20,250 lbs.
Rod End Bearing Material: Stainless steel
Quantity: Sold individually.
Notes: Features a PTFE liner with F1 fit- you will need a bar to move the ball within the housing.
