Description

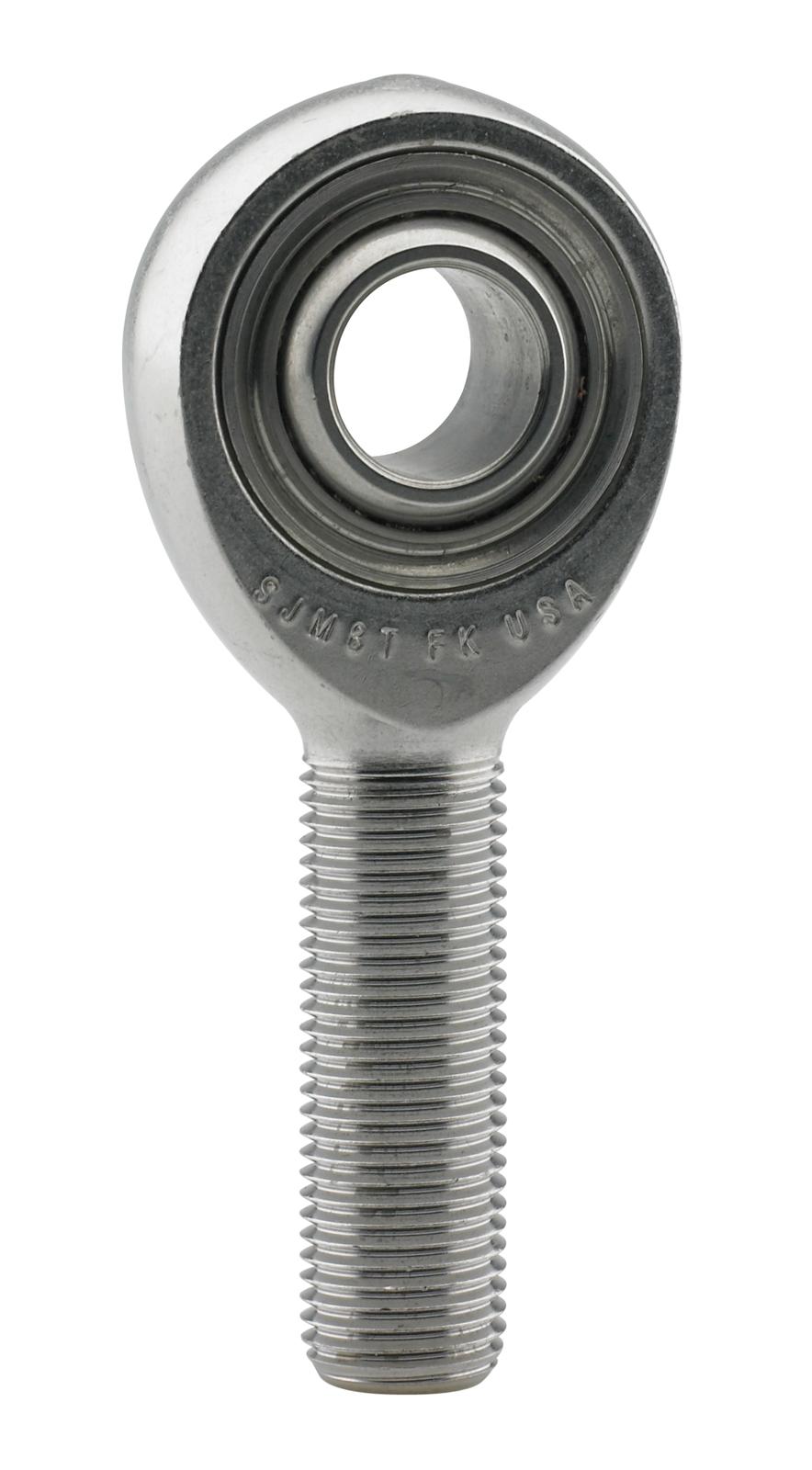

FK SJM-T/SJF-T/SRSM-T Series rod ends feature 3-piece precision stainless steel construction. These self-lubricating, high-strength rod ends feature bodies and races composed of 17-4PH CRES heat-treated stainless steel and a 440C CRES heat-treated stainless steel ball. FK SJM-T/SJF-T/SRSM-T Series rod ends come standard with a PTFE fabric liner bonded to the race i.d.Brand: FK Rod Ends
Manufacturer's Part Number: SJML8T
Part Type: Rod Ends
Product Line: FK SJM-T/SJF-T/SRSM-T Series Rod Ends
HP Direct Part Number: FKB-SJML8T
UPC: 800199880816
Rod End Thread Size: 1/2 in.-20 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.500 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.468 in.
Rod End Head Diameter: 1.337 in.
Rod End Head Width: 0.515 in.
Grease Fitting: No
Rod End Centerline Length: 2.438 in.
Heat-Treated: Yes
Rod End Ball Width: 0.625 in.
Rod End Misalign Angle: 11 degrees
Rod End Static Load Capacity: 19,520 lbs.
Rod End Material: Stainless steel
Rod End Finish: Natural
Quantity: Sold individually.
Manufacturer's Part Number: SJML8T
Part Type: Rod Ends
Product Line: FK SJM-T/SJF-T/SRSM-T Series Rod Ends
HP Direct Part Number: FKB-SJML8T
UPC: 800199880816
Rod End Thread Size: 1/2 in.-20 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.500 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.468 in.
Rod End Head Diameter: 1.337 in.
Rod End Head Width: 0.515 in.
Grease Fitting: No
Rod End Centerline Length: 2.438 in.
Heat-Treated: Yes
Rod End Ball Width: 0.625 in.
Rod End Misalign Angle: 11 degrees
Rod End Static Load Capacity: 19,520 lbs.
Rod End Material: Stainless steel
Rod End Finish: Natural
Quantity: Sold individually.
