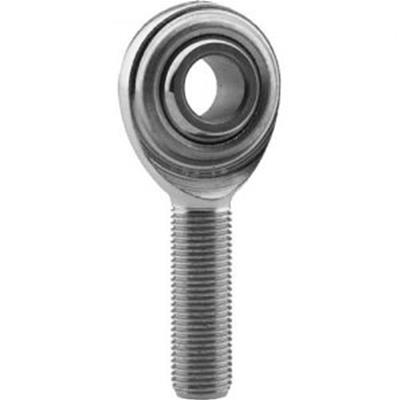

FK SCM-MT/SCF-MT Series Rod Ends SCM6T

FK Rod Ends SCM-MT/SCF-MT Series are beautiful 2-piece metric rod ends precision-built for performance. Both male and female rod ends have bodies that are 303 stainless steel fitted with heat-treated 440C stainless steel balls and PTFE fabric liner. The PTFE liner is chemically bonded to the race for superior load-carrying capacity and enhanced dynamic wear characteristics. When the temperature rises, FK SCM-MT/SCF-MT Series replacement rod ends have the beauty and the brawn to keep performing to your expectations. Order the size, load capacity, and other options needed for your application.Brand: FK Rod Ends
Manufacturer's Part Number: SCM6T
Part Type: Rod Ends
Product Line: FK SCM-MT/SCF-MT Series Rod Ends
HP Direct Part Number: FKB-SCM6T
Rod End Thread Size: 3/8 in.-24
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.375 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.250 in.
Rod End Head Diameter: 1.000 in.
Rod End Head Width: 0.359 in.
Grease Fitting: No
Rod End Centerline Length: 1.938 in.
Heat-Treated: Yes
Rod End Ball Width: 0.500 in.
Rod End Misalign Angle: 22 degrees
Rod End Static Load Capacity: 3,040 lbs.
Rod End Material: Stainless steel
Rod End Finish: Natural
Quantity: Sold individually.
