Description

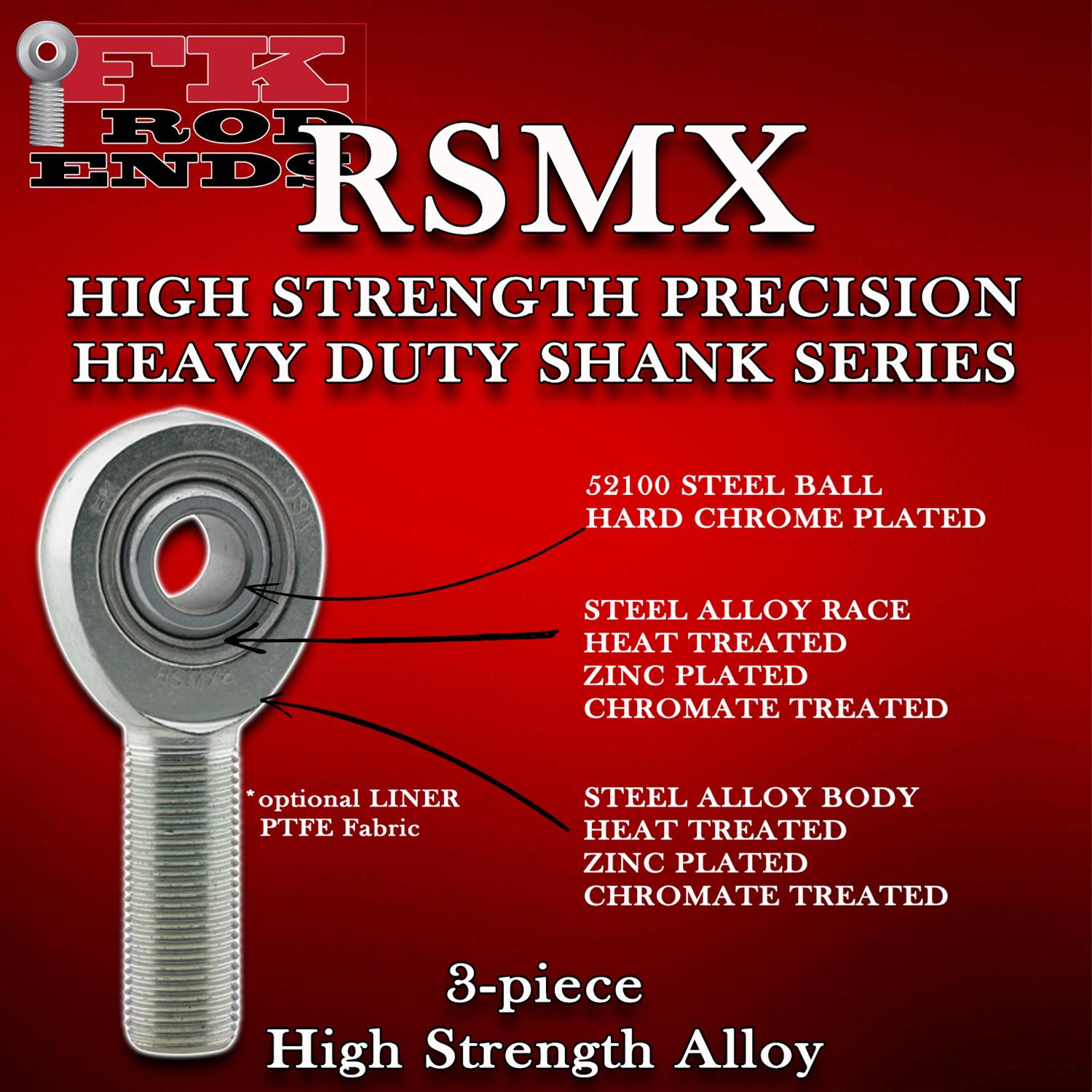

FK RSMX Series rod ends are 3-piece, extra-strong rods with heavy-duty shanks. Their alloy steel bodies are heat-treated, chromate-treated, and zinc plated for strength and durability. Their durable 52100 steel balls are heat-treated and hard chrome plated. RSMX Series rod ends' steel alloy races are heat-treated, zinc plated, and chromate treated for additional strength. Self-lubricating PTFE liners are available with these rod ends.Brand: FK Rod Ends
Manufacturer's Part Number: RSMXL6T
Part Type: Rod Ends
Product Line: FK RSMX Series Rod Ends
HP Direct Part Number: FKB-RSMXL6T
UPC: 800199480610
Rod End Thread Size: 7/16 in.-20 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.375 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.375 in.
Rod End Head Diameter: 1.125 in.
Rod End Head Width: 0.406 in.
Grease Fitting: No
Rod End Centerline Length: 2.125 in.
Heat-Treated: Yes
Rod End Ball Width: 0.500 in.
Rod End Misalign Angle: 10 degrees
Rod End Static Load Capacity: 17,610 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Manufacturer's Part Number: RSMXL6T
Part Type: Rod Ends
Product Line: FK RSMX Series Rod Ends
HP Direct Part Number: FKB-RSMXL6T
UPC: 800199480610
Rod End Thread Size: 7/16 in.-20 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.375 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.375 in.
Rod End Head Diameter: 1.125 in.
Rod End Head Width: 0.406 in.
Grease Fitting: No
Rod End Centerline Length: 2.125 in.
Heat-Treated: Yes
Rod End Ball Width: 0.500 in.
Rod End Misalign Angle: 10 degrees
Rod End Static Load Capacity: 17,610 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
