Description

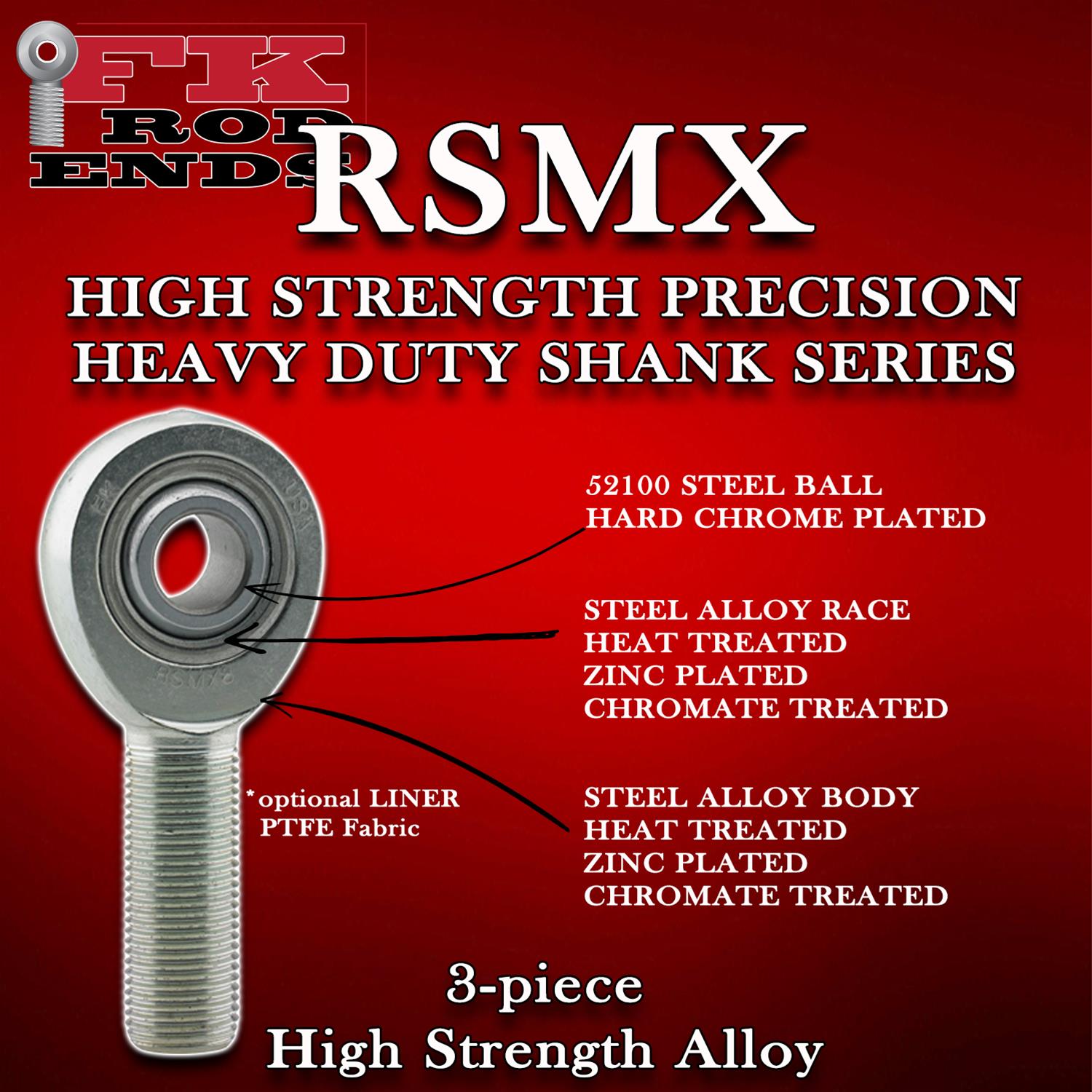

FK RSMX Series rod ends are 3-piece, extra-strong rods with heavy-duty shanks. Their alloy steel bodies are heat-treated, chromate-treated, and zinc plated for strength and durability. Their durable 52100 steel balls are heat-treated and hard chrome plated. RSMX Series rod ends' steel alloy races are heat-treated, zinc plated, and chromate treated for additional strength. Self-lubricating PTFE liners are available with these rod ends.Brand: FK Rod Ends

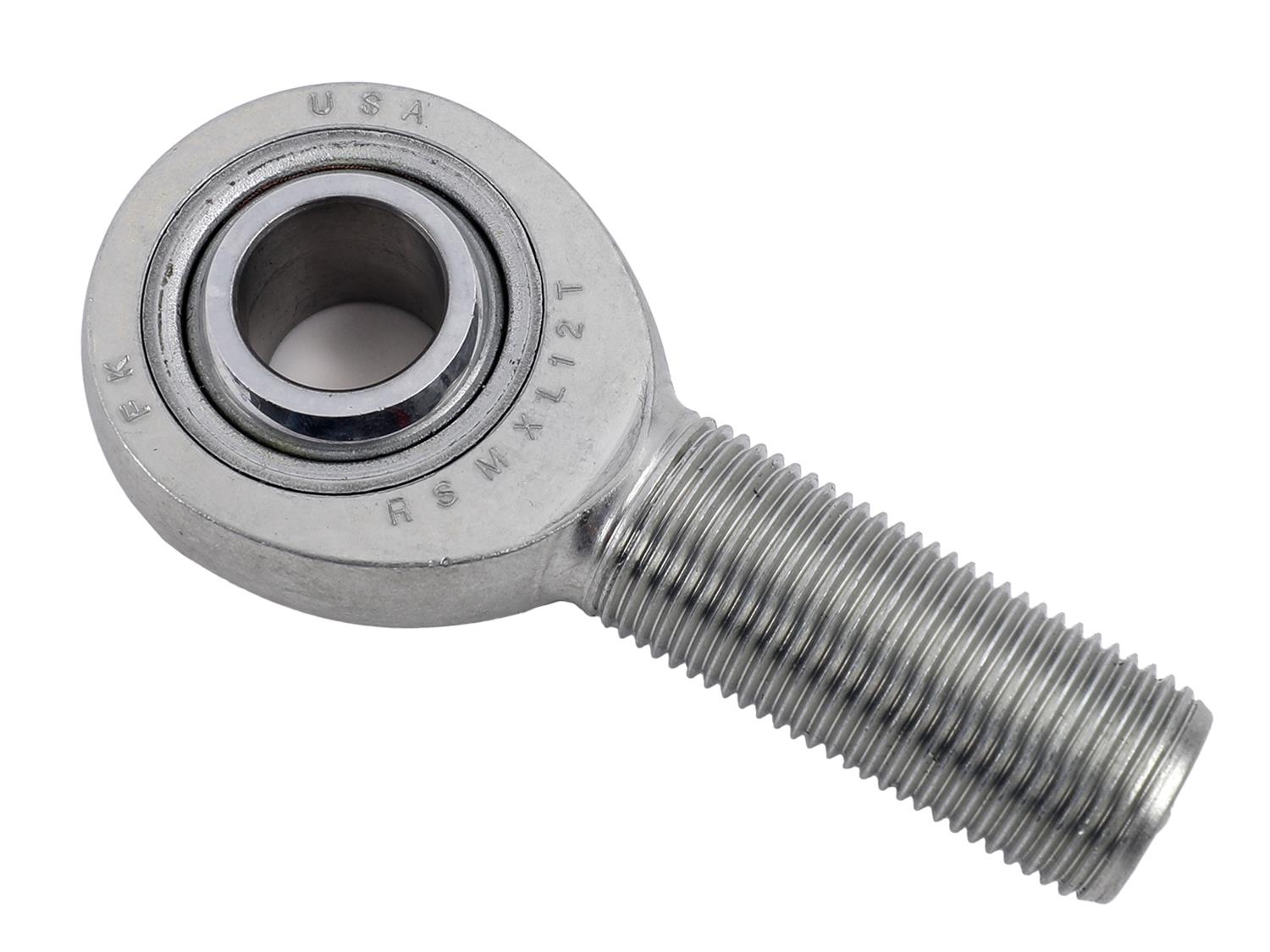

Manufacturer's Part Number: RSMXL12T
Part Type: Rod Ends
Product Line: FK RSMX Series Rod Ends
HP Direct Part Number: FKB-RSMXL12T
UPC: 800199481211
Rod End Thread Size: 7/8 in.-14 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.750 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.875 in.
Rod End Head Diameter: 2.000 in.
Rod End Head Width: 0.687 in.
Grease Fitting: No
Rod End Centerline Length: 3.375 in.
Heat-Treated: Yes
Rod End Ball Width: 0.875 in.
Rod End Misalign Angle: 12 degrees
Rod End Static Load Capacity: 55,696 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
