Description

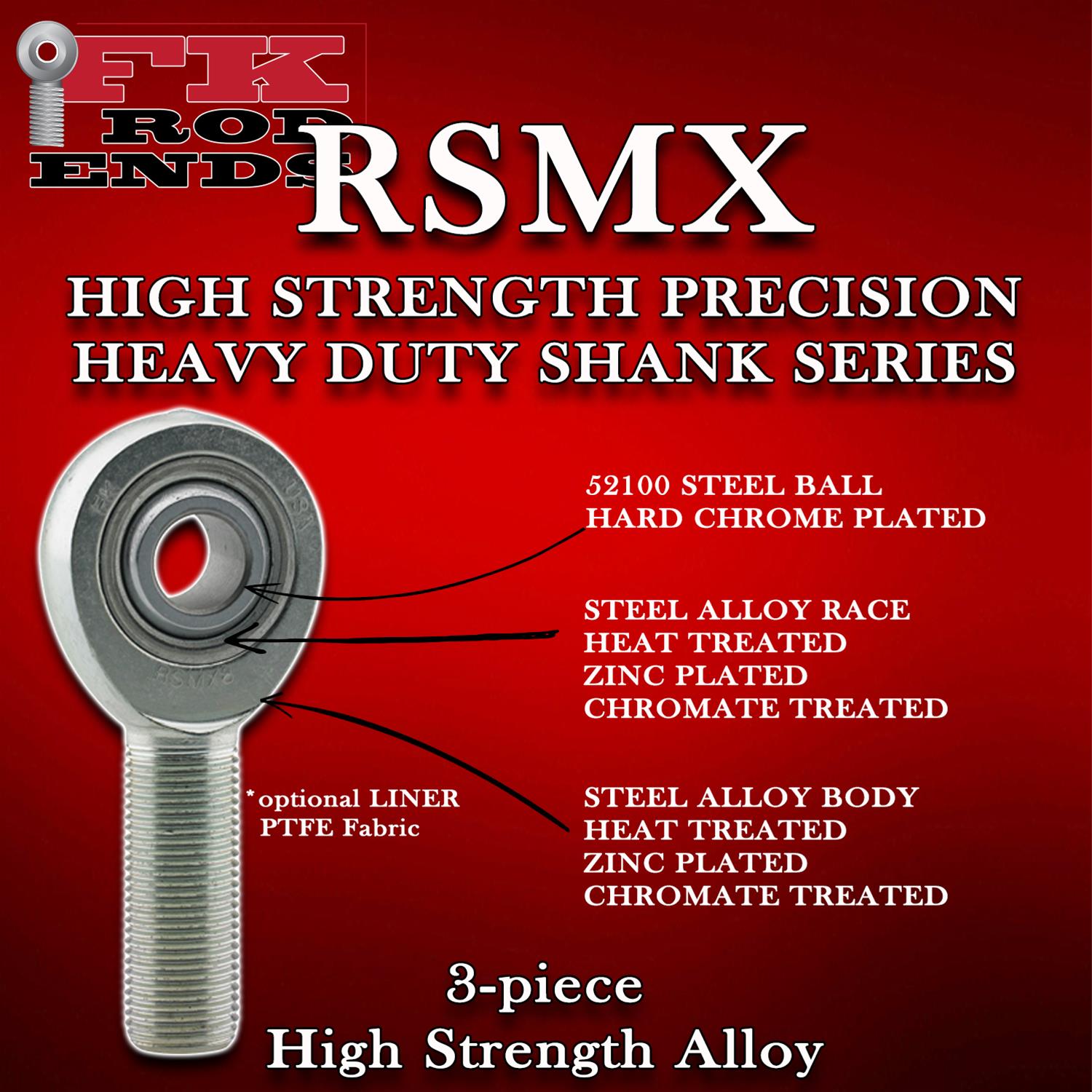

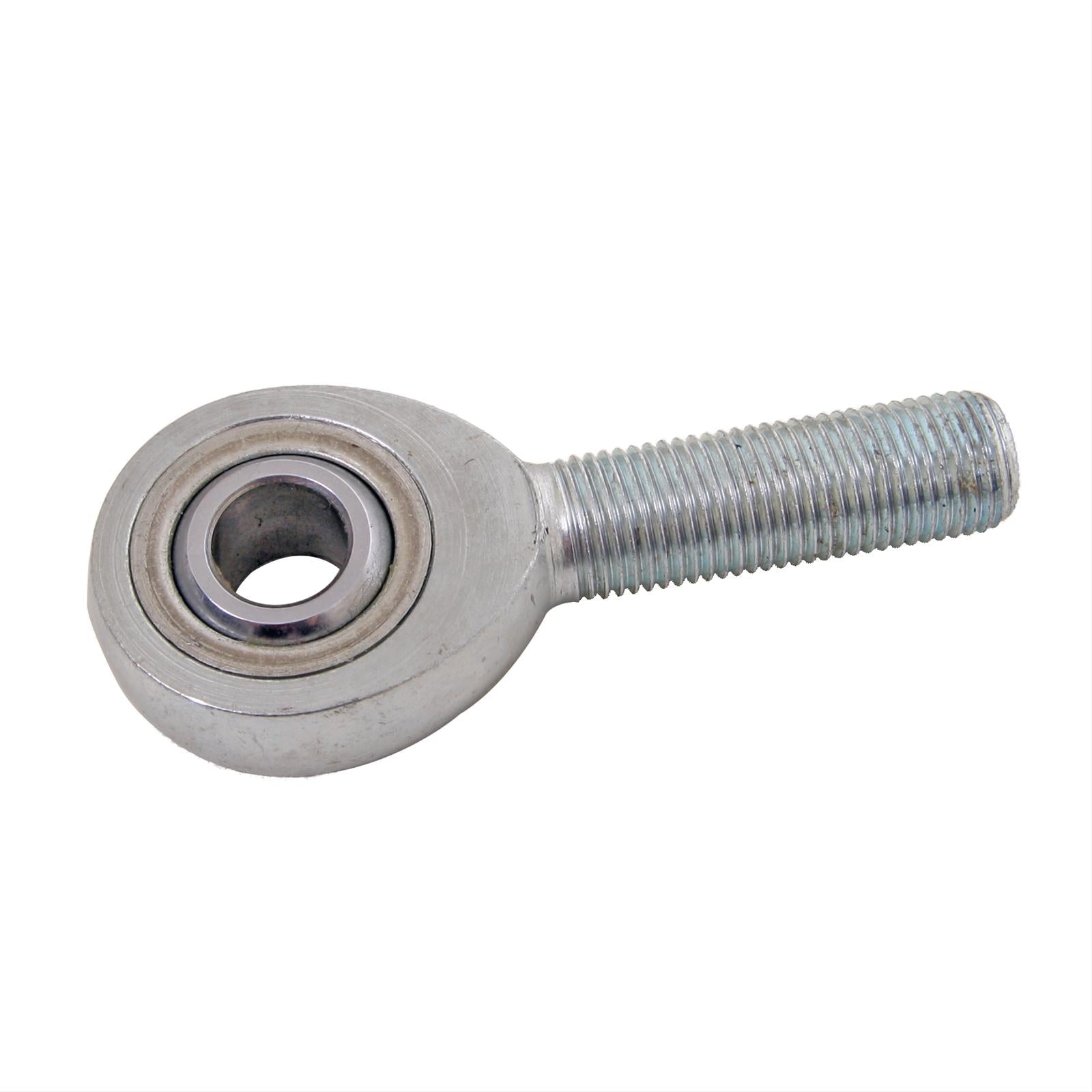

FK RSMX Series rod ends are 3-piece, extra-strong rods with heavy-duty shanks. Their alloy steel bodies are heat-treated, chromate-treated, and zinc plated for strength and durability. Their durable 52100 steel balls are heat-treated and hard chrome plated. RSMX Series rod ends' steel alloy races are heat-treated, zinc plated, and chromate treated for additional strength. Self-lubricating PTFE liners are available with these rod ends.Brand: FK Rod Ends
Manufacturer's Part Number: RSMX7
Part Type: Rod Ends
Product Line: FK RSMX Series Rod Ends
HP Direct Part Number: FKB-RSMX7
UPC: 800199470703
Rod End Thread Size: 1/2 in.-20
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.438 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.500 in.
Rod End Head Diameter: 1.312 in.
Rod End Head Width: 0.437 in.
Grease Fitting: No
Rod End Centerline Length: 2.438 in.
Heat-Treated: Yes
Rod End Ball Width: 0.562 in.
Rod End Misalign Angle: 12 degrees
Rod End Static Load Capacity: 23,470 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
