E-Stopp Key-Stopp Key Lock Electric Emergency Brakes ESK003

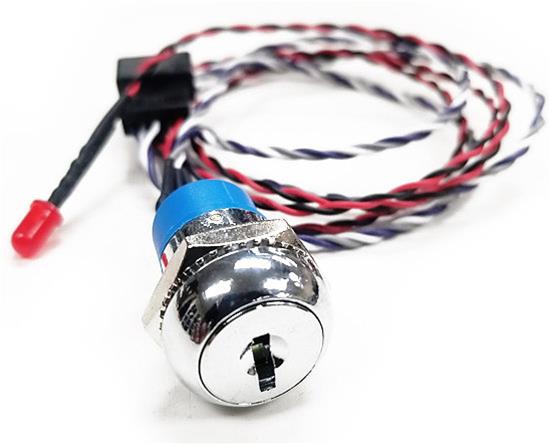

E-Stopp Key-Stopp key lock electric emergency brakes are key lock kits with an actuator and controller. There's no need to hide the 25mm billet button (with red LED) to gain anti-theft capabilities. These kits also help prevent accidental activation/de-activation of the emergency brake with multiple indicators to help alert you when the device is on or off. Successful conversion is fast and easy, and they're interchangeable with current E-Stopp kits. Confidently park your custom ride anywhere with an E-Stopp Key-Stopp electric e-brake kit.

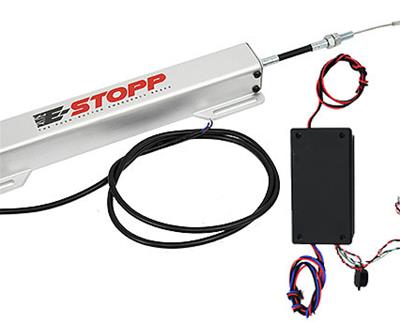

Actuator specs:

* 21 in. overall length (15 in. not including cable) x 2 in. width x 1.8 in. height
* 11 in. brake cable
* Cable threads 6mm x 1 pitch and 10mm x 1.5 pitch

Control Box specs:

* 4.9 in. length x 2.5 in. width x 1.9 in. heightBrand: E-Stopp Corp.
Manufacturer's Part Number: ESK003
Part Type: Parking Brakes, Electric
Product Line: E-Stopp Key-Stopp Key Lock Electric Emergency Brakes
HP Direct Part Number: ESC-ESK003
Actuator Included: Yes
Actuator Length (in.): 15.00
Actuator Height (in.): 1.80
Actuator Width (in.): 2.00
Actuator Button Included: No
Brake Cable Included: Yes
Brake Cable Length (in.): 11.00
Control Box Included: Yes
Remote Transmitter Included: No
Quantity: Sold as a kit.
Notes: Kit feature 25mm key lock switch with 2 keys. Cable has 6mm x 1 pitch and 10mm x 1.5 pitch. Control box measures 4.90 in. L x 2.50 in. W x 1.90 in. H.
