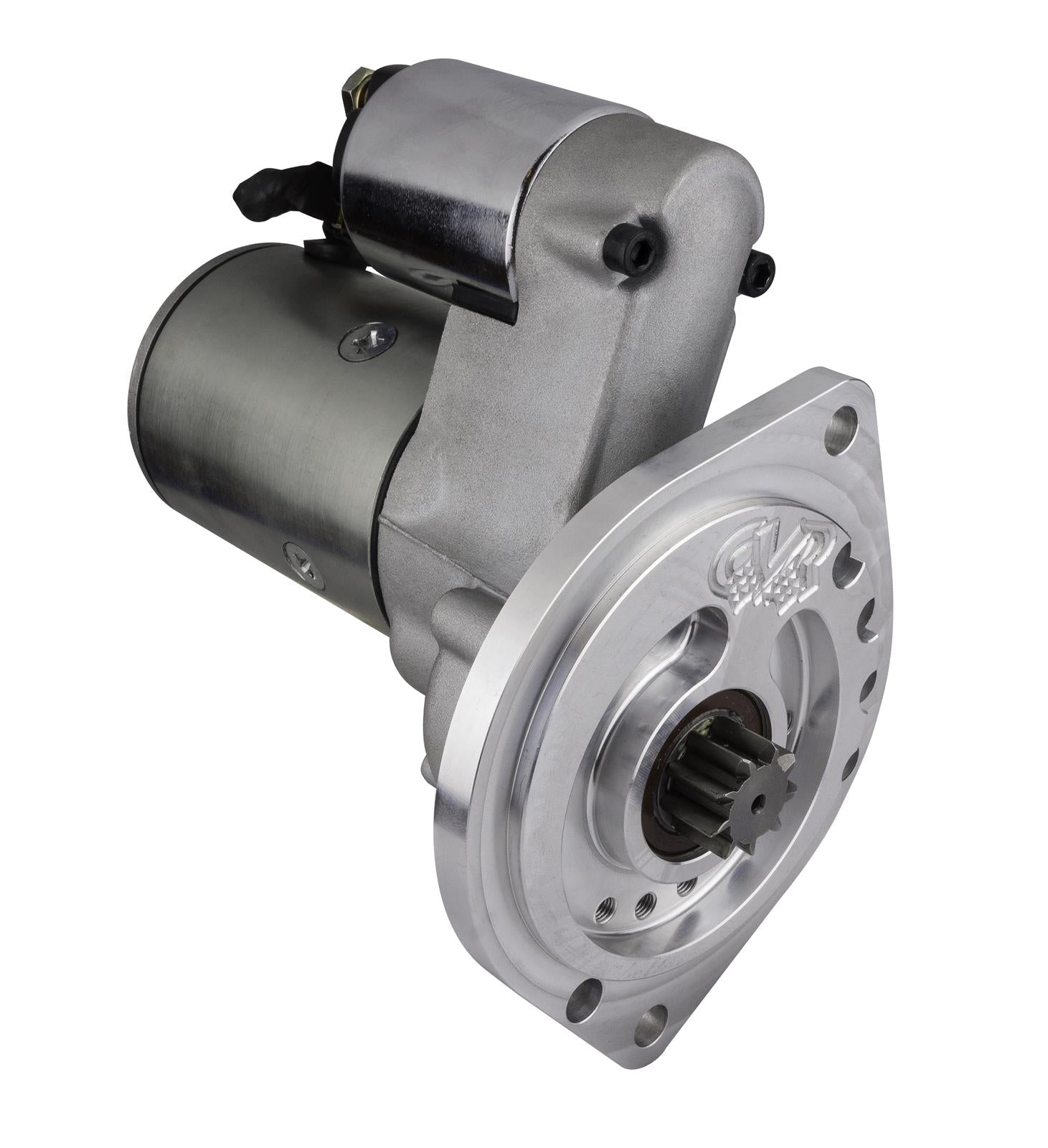

CVR Protorque Ultra Starters 9055

CVR Protorque Ultra starters live up to their name by delivering 250+ lb.-ft. of torque. They feature a specially wound field coil and armature to deliver that torque throughout the cranking range. The machined aluminum adjustable mounting block works with most oversized kickout oil pans, and are great for big cubic inch engines. The starters use a 2.5 kW, 3.4 hp motor that'll support up to 18:1 compression ratio.Brand: CVR
Manufacturer's Part Number: 9055
Part Type: Starters
Product Line: CVR Protorque Ultra Starters
HP Direct Part Number: CVS-9055
UPC: 833077005254
Flywheel/Flexplate Tooth Quantity: 157/164-Tooth
Starter Style: Mini Hitachi
Adjustable Mounting Block: Yes
Starter Rotation: Standard
Starter Color: Gold
Maximum Recommended Compression Ratio: 18.0:1
Gear Reduction Ratio: 4.40:1
Mounting Block Material: Aluminum
Remanufactured: No
Quantity: Sold individually.
Special Attention: Starter has a 3/4 in. offset and fits applications with automatic transmissions using a 157 or 164 tooth ring gear or manual transmissions using a 157 tooth ring gear (Normally 5-speeds). This replaces OEM starters with a 'nose' that extends 2-3/8 in. past the mounting surface. 3/4 in. offset.
