Cloyes Hex-A-Just Timing Sets 9-3100A

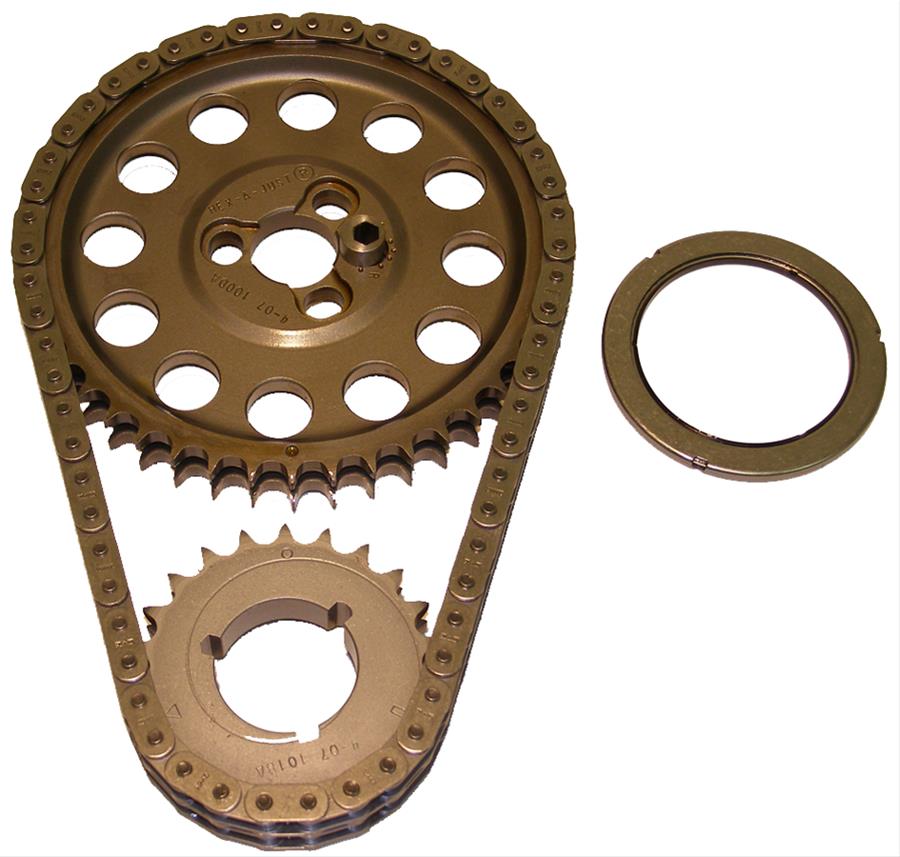

With Cloyes Hex-A-Just timing sets, infinitely adjustable cam timing is as simple as turning an Allen wrench. Consisting of SAE 1144 billet steel cam and crank sprockets and a true roller timing chain, these timing sets use a special hex-head bushing installed on your cam's dowel pin. This bushing lines up with degree marks on the cam sprocket. You can adjust timing in fractions of a degree (as much as +/-6 degrees) by loosening the cam bolts and turning the bushing with an Allen wrench. Cloyes Hex-A-Just timing sets install under your stock timing cover and can be used in align-bored blocks. Order the model designed for your vehicle and engine application.Brand: Cloyes Gear
Manufacturer's Part Number: 9-3100A
Part Type: Timing Chain and Gear Sets
Product Line: Cloyes Hex-A-Just Timing Sets
HP Direct Part Number: CLO-9-3100A
UPC: 750385701039
Timing Chain Included: Yes
Timing Chain Style: Double roller
Camshaft Gear Attachment: 3-bolt
Maximum Advance/Retard at Camshaft: 3 degree
Maximum Advance/Retard at Crankshaft: 6 degree
Cam Gear Included: Yes
Cam Gear Material: Steel
Crank Gear Included: Yes
Crank Gear Material: Steel
VVT Gear Included: No
Tensioner Included: No
Thrust Bearing Included: Yes
Bolts/Studs Included: No
Gaskets Included: No
Offset Bushings Included: No
Quantity: Sold as a set.
Notes: Standard Center distance 4.521 in. Will not fit factory roller camshaft.
