Clear View Filtration See Through Oil Filters 410-60-B

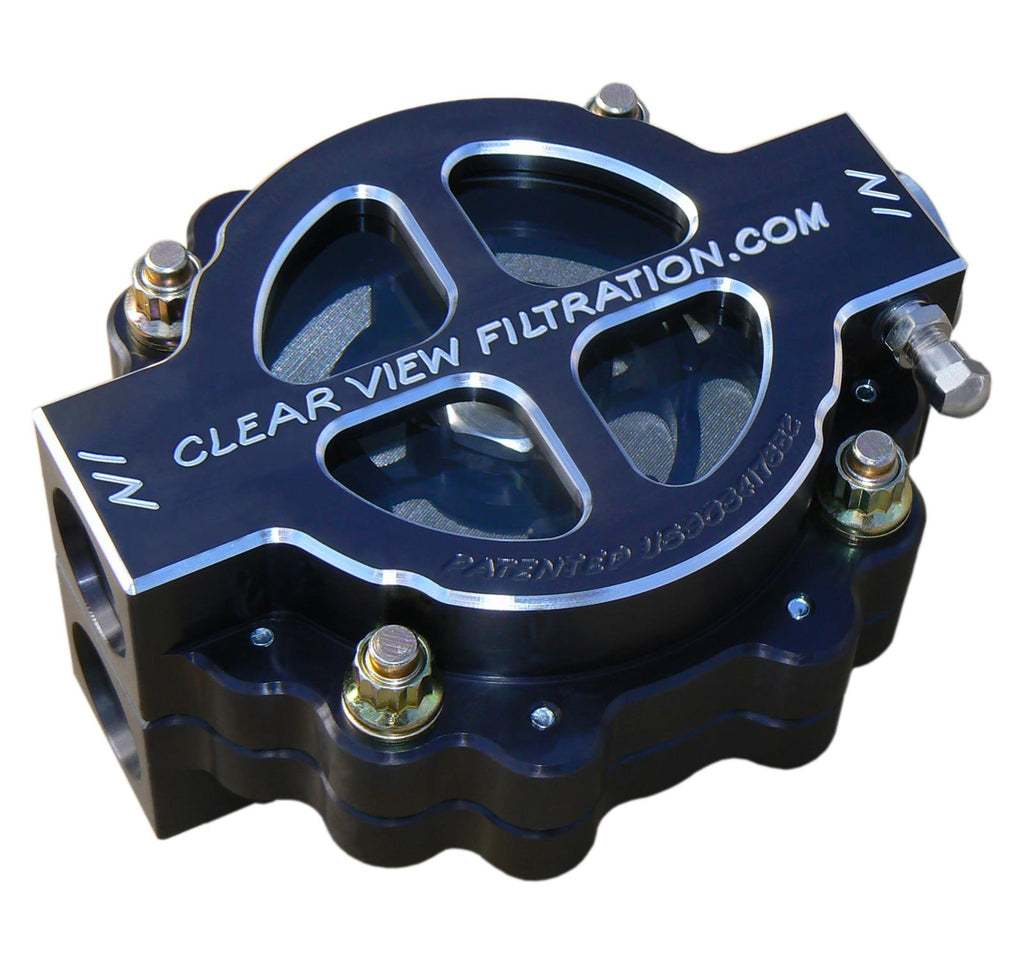

Clear View Filtration See Through oil filters are the future of oil filtration. These patented filter assemblies allow you to visually see oil pumping through the filter and determine the condition of the oil. Also, oil can be emptied out of the assembly in seconds, exposing the element and the filtered particles. This permits you to visually inspect particles and contaminants to determine if they are from normal use, or from bearings and other components excessively wearing in the engine or machinery.

Clear View Filtration See Through oil filter assemblies are available in 4 in. and 6 in. sizes; screw-on, dry sump, or high-flow filter styles with a clear or black anodized finish for added protection and durability. The kits will include stainless steel mesh filter elements with Viton ® rubber seals in different micron mesh openings to accommodate all different types, thicknesses, and viscosities of oils and fluids, along with a bracket kit.
Brand: Clear View Filtration
Manufacturer's Part Number: 410-60-B
Part Type: Oil Filters
Product Line: Clear View Filtration See Through Oil Filters
HP Direct Part Number: BCN-410-60-B
Oil Filter Style: Inline
Smallest Particle Filtered: 60 microns
Height (in.): 3.000 in.
Length (in.): 6.000 in.
Filter Bypass Relief Valve: Yes
Anti-Drainback Valve: No
Inlet Quantity: 2
Inlet Attachment: Female threads
Oil Filter Inlet Size: -12 AN O-ring
Outlet Quantity: 2
Outlet Attachment: Female threads
Oil Filter Outlet Size: -12 AN O-ring
Maximum Burst Pressure (psi): 150 psi
Quantity: Sold as a kit.
Notes: Black anodized. Includes bracket kit.
