Description

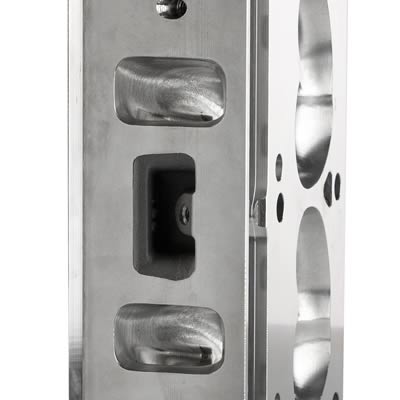

If you need the world's finest high performance street/strip small block Ford heads, then check out AFR's 185cc emissions-legal Renegade Street cylinder heads (CARB E.O. #250-3). With lightweight 8mm, 2.020 in. intake valves and 1.600 in. exhaust valves, combustion chamber volumes of 58 or 72cc, and 68cc exhaust ports, AFR's 185cc Ford cylinder heads are designed for 302-351 c.i.d. engines operating from 1,500 to 6,500 rpm. A 3/4 in. thick head deck makes the AFR heads ideal for nitrous or blower applications. These heads will not accept rail rocker arms, and hardened push rods are required on models designed for stud mount rocker arms.Brand: Airflow Research (AFR)
Manufacturer's Part Number: 1493
Part Type: Cylinder Heads
Product Line: AFR 185cc SBF Renegade 20 Degree Street Heads
HP Direct Part Number: AFR-1493
Combustion Chamber Volume (cc): 60
Intake Runner Volume (cc): 165cc
Exhaust Runner Volume (cc): 70cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Manufacturer's Part Number: 1493
Part Type: Cylinder Heads
Product Line: AFR 185cc SBF Renegade 20 Degree Street Heads
HP Direct Part Number: AFR-1493
Combustion Chamber Volume (cc): 60
Intake Runner Volume (cc): 165cc
Exhaust Runner Volume (cc): 70cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
